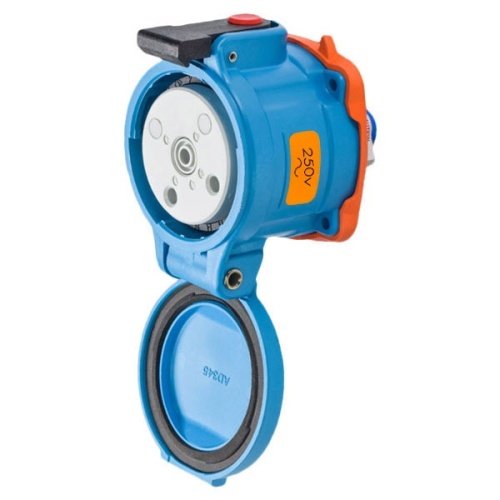

Meltric 33-34072-026 Ds30 Receptacle Poly Blue Size .3 Type 3R 2P+G 30A 250 Vac 60 Hz Flat Black Gasket
Normally In Stock
Code: 130021
Ds30 Receptacle Poly Blue Size.3 Type 3R 2P+G 30A 250 Vac 60 Hz Flat Black Gasket
Condition: New
Usually Ships Same Day or Next DayMUST ORDER A MINIMUM OF $110 FROM MELTRIC FOR PRODUCT TO SHIP
$418.87
Sale Price
$349.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ds30 Receptacle Poly Blue Size.3 Type 3R 2P+G 30A 250 Vac 60 Hz Flat Black Gasket
Specifications
Receptacle Composition
Plastic
Receptacle Color
Blue
Receptacle Contact Configuration
2P+G
Receptacle Amperage
30 Amp
Receptacle Voltage
250 VAC
Receptacle NEMA Type
Type 3R
Receptacle Size
Size 3
Manufacturer
Meltric
Component
Receptacle
Meltric Series
DS30 Switch-Rated
Features
OFF Button Press to de-energize. Provides push button circuit disconnection
Casing Fiberglass reinforced thermoplastic polyamide material offers great resistance to impact, corrosion and harsh environmental conditions.
Lockout-Tagout Provisions Allows plug to be easily locked out and tagged out. Optional Padlock Pawl allows lockout/ tagout of the receptacle.
Silver-Nickel Contact Material Solid silver-nickel contact surfaces provide superior conductivity, durability and corrosion resistance.
Dead Front Safety Shutter Ensures safety by preventing user access to live parts
Lid Provides 3R or Type 4X/IP69/IP69K for additional protection in harsh environments.
Spring-Loaded Butt-Style Contacts Ensures optimal contact force and superior electrical performance over thousands of operations.
Spring Assisted Screw Terminals Patented design ensures “Tighten and Forget” confidence.
