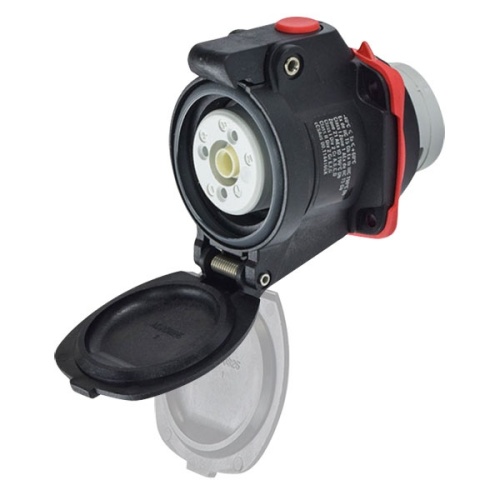

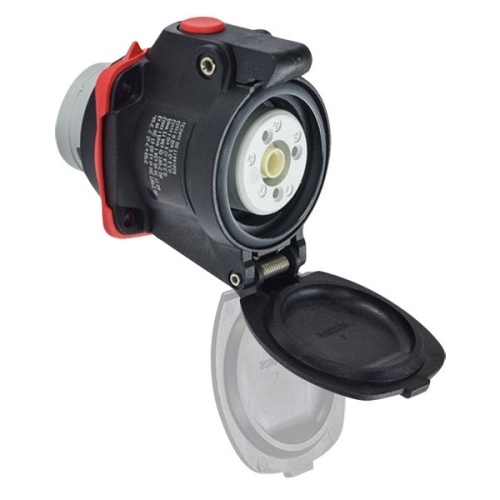

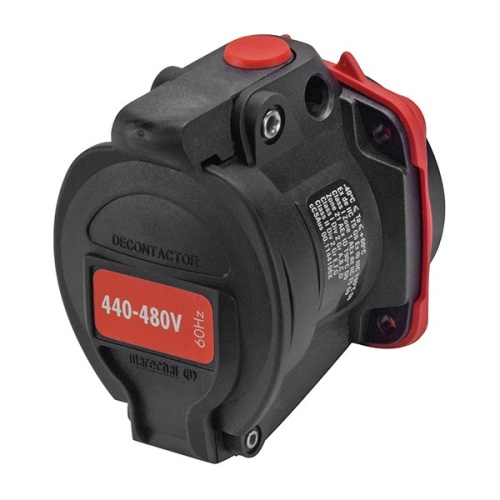

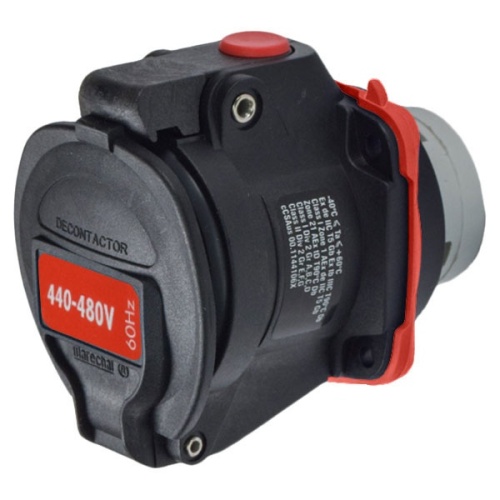

Meltric 22-14043 Hazardous Location DXN20 Receptacle 480 VAC 20A Black Poly
Normally In Stock
Code: 128337
Meltric 22-14043 Hazardous Location DXN20 Receptacle 480 VAC 20A Black Poly 3P+G 7.5 HP
Condition: New
Usually Ships Same Day or Next DayMUST ORDER A MINIMUM OF $110 FROM MELTRIC FOR PRODUCT TO SHIP
*NON-CANCELLABLE, NON-RETURNABLE*
$513.00
Sale Price
$427.50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Meltric 22-14043 Hazardous Location DXN20 Receptacle 480 VAC 20A Size 1 3P+G Black Poly IP66,IP67 CSA Class I Div 2 Screw Terminal Standard Pawl UL 498,UL 1682
Specifications
Receptacle Voltage
480 VAC
Receptacle Amperage
20 Amp
Receptacle Contact Configuration
3P+G
Receptacle Color
Black
Receptacle Wiring Connection Type
Screw Terminal
Receptacle HP Rating
7.5 HP
Receptacle IP Rating
IP66
Receptacle IP Rating
IP67
Receptacle Min Wire Size
16 AWG
Receptacle Max Wire Size
10 AWG
Receptacle UL Listing
UL 498
Receptacle UL Listing
UL 1682
Receptacle Pawl Type
Standard Pawl
Receptacle Hazardous Location Rating
CSA Class I Div 2
Receptacle Size
Size 1
Receptacle Composition
Poly
Manufacturer
Meltric
Component
Receptacle
Meltric Series
DXN20 Hazardous Location
Features
Pushbutton Pawl /OFF Button Provides quick, safe and easy current interruption.
Spring-Loaded Butt-Style Contacts Ensures optimal contact force and superior electrical performance over thousands of operations.
Arc Isolation Chamber Minimizes gas/dust volume present during arcing, withstands internal pressure due to ignition of it and isolates the ignition from the outside environment.
Arc-Extinguishing Flame Path Dissipates internal pressure created during arcing while also preventing any associated ignition sources from reaching the surrounding atmosphere.
Lid When closed, the lid maintains IP66/IP67 protection for the receptacle after removal of the plug.
Casing Self-extinguishing, non-static, material provides outstanding resistance to mechanical abuse and chemicals.
Hazardous Location Termination Areas Includes enhanced creepage and clearance distances and specially designed terminals to ensure perfect and permanent clamping
Silver-Nickel Contacts Silver-nickel contact material provides superior conductivity, durability and corrosion resistanc
