Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

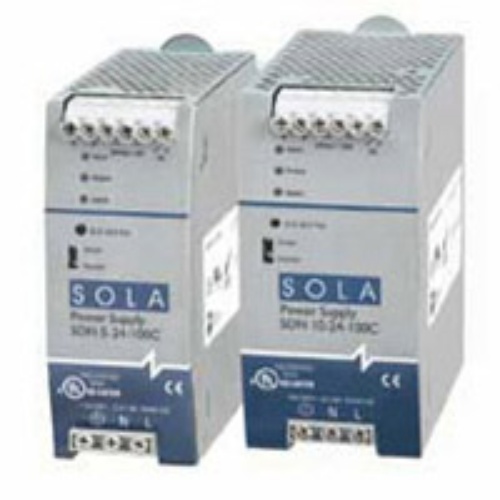

Sola SDN5-24-480C Power Supply 3 Phase 24V 5A
Normally In Stock
Code: 12700
Sola SDN(Class1 Div2) 3 Phase,22.5-28.5Vdc 5A 120W Power Supply(4.88"H x 2.91"W x 4.55"D)
Condition: New
Usually ships Same Day or Next DayMUST ORDER A MINIMUM OF $350 FROM SOLA FOR PRODUCT TO SHIP
$683.28
Sale Price
$569.40
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Sola SDN 5-24-480 volt DC Power Supply(Class1 Div2) Auto Select 115/230 volt input and 22.5-28.5 volt DC output. 2.5A 60W Power Supply(4.88"H x 1.97"W x 4.55"D). Wide operation temperature range,high tolerance to shock and vibration and reliable design make the SDN series the preferred choice of users everywhere.
Specifications
Power Supply Type
Switching
Power Supply Voltage Input
120 VAC
Power Supply Voltage Input
240 VAC
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Watts
120 Watt
Power Supply Voltage Output
24 VDC
Power Supply Housing
Enclosed
Component
Power Supply
Manufacturer
Sola
Line
SDN Series
Power Supply Amperage Output Range
0-5 Amp
Features
Extensive international hazardous location certifications, including Class I, Zone 2, ATEX, IECEx, CCC, UKCA. Hazardous location temperature code (T-Code) rating of T4.
International off-shore certifications, including ABS and DNV
PowerBoostTM enables short duration overload capability, to start loads with high inrush current
Three LEDs provide extensive diagnostics
Dual output terminals for convenience in wiring
DC OK relay to provide diagnostic information to a PLC, controller, or monitoring system
Universal AC and DC input voltages to accommodate global requirements
Wide operating temperature range accommodates both extreme hot and extreme cold environments
Active Power Factor Correction on most models
Parallel operation capability standard
Supports redundant power supply operation using optional SDN™ Redundancy modules
Conformal Coated versions (“X” suffix) available for Corrosion Resistance, meets G3 Harsh Rating per ISA 71.04 Group A.
5-year limited warranty
