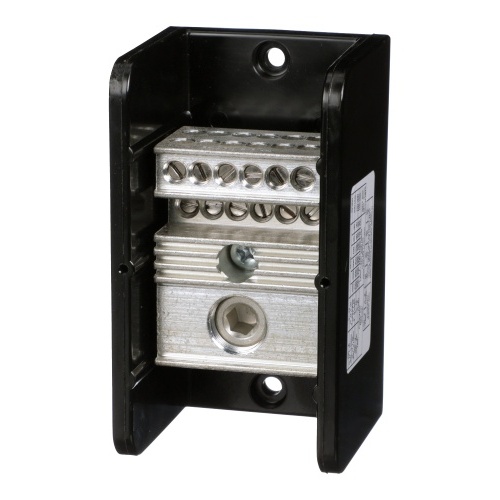

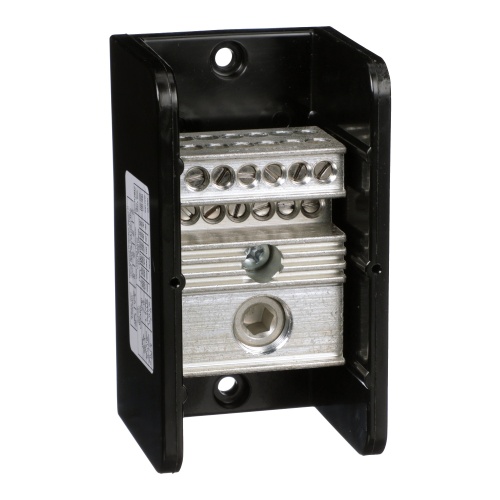

Schneider Electric 9080LBA165112 Power distribution block, Linergy, 1 pole, 1 line, 12 load, 380A CU, 310A AL, 600 V
Normally In Stock
Code: 113815
Schneider 9080LBA165112 5.5 in (139.70 mm Power Distribution Block 1 380 A copper, 310 A aluminium 1 line, 12 load 600 V AC/DC Circuit Protectors/Fuseholders/Terminal Blocks Square D 9080 Power Distribution Blocks 9080LB Power Distribution Blocks
Condition: New
Normally Stocked$216.96
Sale Price
$180.80
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Power distribution block, Linergy, 1 pole, 1 line, 12 load, 380A CU, 310A AL, 600 V
Specifications
Terminal Block Voltage Rating
600 Volt
Terminal Block Amperage
310 Amp
Terminal Block Amperage
380 Amp
Manufacturer
Schneider Electric
Component
Terminal Block
Sub Component
Power Distribution Block
Features
Linergy power distribution blocks are for terminating wires and are designed to NEMA standards
This one pole block has one lug opening on the line (main) side and twelve lug openings on the load (branch) side
The line side lug is rated to accept one #4 to 500 kcmil copper or aluminum wire
The load side lug is rated to accept one #14 to 2 copper or aluminum wire
The lugs are made of aluminum
The lugs are rated for 380 amperes with copper wire and 310 amperes with aluminum wire
The lugs are rated to 600 volts
The housing is made of general purpose phenolic
These Linergy power distribution blocks are UL component recognized and CSA certified.
