Phoenix Contact 2920450 Type 2 surge arrester VAL-MS 580/3+0
Normally In Stock
Code: 1130

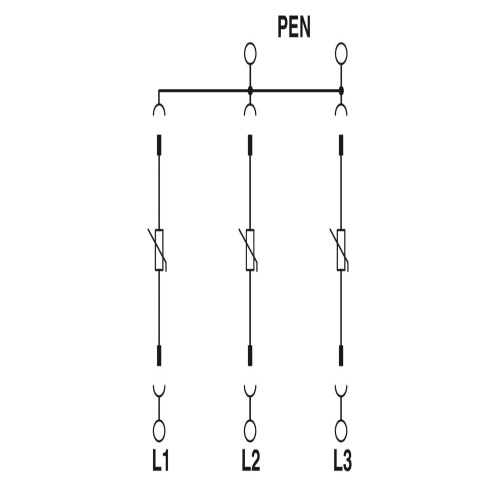

VAL-MS 580/3+0 Phoenix Contact VAL-MS 580/3+0 Surge arrester for 4-conductor power supply systems (L1, L2, L3, PEN), consisting of a base element and protective connectors, for mounting on DIN rail.
Condition: New
Usually ships within 7-14 days. Call for ship time.$481.90
Sale Price
$401.58
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2920450 A surge arrester specifically designed for four-conductor power supply systems, including Line to Line (L1, L2, L3) and Neutral-to-Earth (PEN) conductors, is provided as part of a complete assembly comprising a base element and protective connectors, suitable for mounting on the NS 35 rail.
Specifications
Surge Protector Mount
Din Rail Mount
Fault Warning
Optical
Fault Warning
Remote Indicator Contact
Combined Surge
4 Kv
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Maximum Continous Voltage
100 Volt
Nominal Discharge Current
2 Ka
Surge Protector Line Voltage
400-690 Volt
Component
Surge Arrester
Features
Wide range of applications due to various nominal voltages
Rapid installation with bridges, thanks to industry-standard overall width of 1 HP

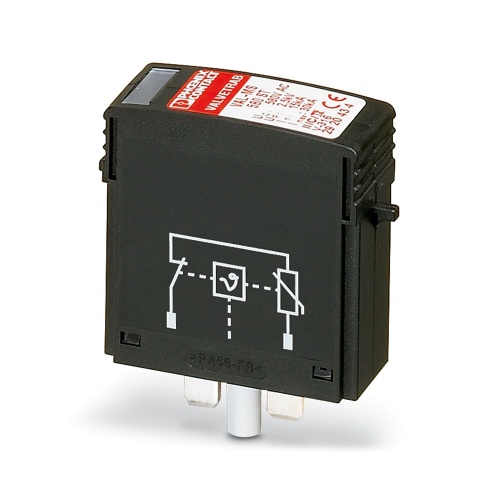

Easy testing and insulation measurement, thanks to pluggable protection modules
Quality proven millions of times over in the widest range of applications
High degree of modularity provides individual solutions for every application
Downloads
Phoenix 2920450 CAD data International.dxfPhoenix 2920450 CAD data International.pdfPhoenix 2920450 CAD data International.stpPhoenix 2920450 CAD Drawing.zipPhoenix 2920450 Flyer English.pdfPhoenix 2920450 Manufacturers declaration International.pdfPhoenix 2920450 Package Slip International.pdfPhoenix 2920450 Package Slip.pdfPhoenix 2920450 Software International.zipPhoenix 2920450 Spec Sheet.pdfPhoenix 2920450 Surge Protection English.pdfPhoenix 2920450 Tender Text English.zipPhoenix 2920450 TRABTECH teachware TTT_1_4_2.zipPhoenix 2920450 User Manual.pdf
