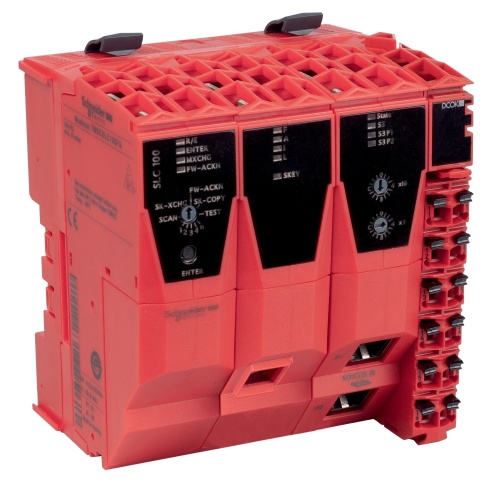

Schneider Electric TM5CSLC200FS Safe logic controller - CPU plus - SERCOS III interface - 80 nodes
Normally In Stock
Code: 110695
Schneider TM5SAI2L Analog input module 2 voltage +/- 10 V differential, current 0-20 mA/4-20 mA differential 12 bits + sign +/- 10 V, 12 bits 0-20 mA/4-20 mA Logic controller, Motion controller 24 V DC -15-20 % White IP20IEC 61131-2 IP20 modular I/O-system Expansion modules "Slic (MUST BUY IN PACKS OF 5)
Condition: New
Normally Stocked$2380.92
Sale Price
$1984.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Safe logic controller - CPU plus - SERCOS III interface - 80 nodes
Specifications
Manufacturer
Schneider Electric
Component
Accessories
Sub Component
Controller
Features
This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System
This safe logic controller has Intel Xscale 266MHz processor with reverse polarity protection, and a 24 V DC power supply
The controller has integrated fuse (not interchangeable) input protection with fanless cooling
It offers SERCOS 3 (Ethernet) communication network with 100Mbps data transmission rate for the full duplex bus length, with 2 integrated shielded RJ45 ports
It supports maximum 100 safety nodes with 2 internal switches
It reaches Category 4 of safety level conforming to EN ISO 13849, and SIL 3 safety integrity level according to IEC 62061
It is an IP20 rated product
The housing colour is red
Its dimensions are 87.5mm (width) x 75mm (depth) x 99mm (height)
It weighs 0.29kg
The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems
This product is certified by GOST-R, C-Tick, cULus and CSA
It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards
This product is compatible with motion controller, communicating on Sercos 3 fieldbus
It is installed by mounting on a 35mm DIN rail
This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers
Flexible and scalable, designed for complex machines.
