Absolute Process Instruments Signal Conditioners
Signal conditioners are devices that convert one type of electronic input signal into a different type of output signal. The input signals received from sensors are amplified, filtered and isolated into a more easily read output signal for processing. Many applications involve measurements from sensors that need signal conditioning before the instrument can accurately and effectively measure the signal. Functions of signal conditioners include: conversion, linearization and amplification.

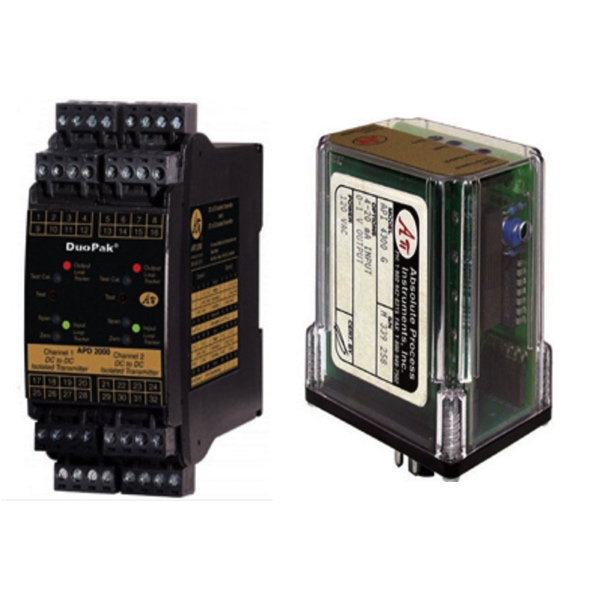

Absolute Process Instruments Signal Conditioners are available in two designs. The first is a 1 Channel Signal Converter/Isolator/Transmitter Channel Plug-in with 1 input signal and 1 output signal and 3-way isolation for each signal and power. The second is a 2 Channel Transmitter and Isolator with factory-configured 2 frequency input signals and 2 independent DC output signals. The power supply voltage (85-265 VAC), inputs and outputs, are all independent. Each input is filtered, amplified, and isolated. Convert and isolate dual output transmitters. Two independent channels with full isolation with zero and span for each output.
Products
Products Per Page:
Sort By:
$427.90
Absolute Process Instruments APD 4310 G P. 85-265 Volt or 60-300 Volt, 1 Channel Signal Converter/Isolator/Transmitter Channel Plug-in with 1 input signal and 1 output signal. 8-pin socket mount, DC to DC with Input signals DC 0-10 mVolt to 100 mVolt, 0-100 uVolt to 0-1 mADC and independent output of 0-1 V to 10V, 0-1 mA to 4-20 mA, 20 V sourcing mA. 3 way isolation for each signal and power. 70 millisecond response time.
$427.90
Absolute Process Instruments APD 4310 G D. 9-30 Volt, 1 Channel Signal Converter/Isolator/Transmitter Channel Plug-in with 1 input signal and 1 output signal. 8-pin socket mount, DC to DC with Input signals DC 0-10 mVolt to 100 mVolt, 0-100 uVolt to 0-1 mADC and independent output of 0-1 V to 10V, 0-1 mA to 4-20 mA, 20 V sourcing mA. 3 way isolation for each signal and power. 70 millisecond response time.
$361.90
Absolute Process Instruments APD 4310 G A230. 230 Volt, 1 Channel Signal Converter/Isolator/Transmitter Channel Plug-in with 1 input signal and 1 output signal. 8-pin socket mount, DC to DC with Input signals DC 0-10 mVolt to 100 mVolt, 0-100 uVolt to 0-1 mADC and independent output of 0-1 V to 10V, 0-1 mA to 4-20 mA, 20 V sourcing mA. 3 way isolation for each signal and power. 70 millisecond response time.
$361.90
Absolute Process Instruments APD 4310 G. 115 Volt, 1 Channel Signal Converter/Isolator/Transmitter Channel Plug-in with 1 input signal and 1 output signal. 8-pin socket mount, DC to DC with Input signals DC 0-10 mVolt to 100 mVolt, 0-100 uVolt to 0-1 mADC and independent output of 0-1 V to 10V, 0-1 mA to 4-20 mA, 20 V sourcing mA. 3 way isolation for each signal and power. 70 millisecond response time.
$394.90
Absolute Process Instruments APD 4300 G P. 85-265 Volt or 60-300 Volt, 1 Channel Signal Converter/Isolator/Transmitter Channel Plug-in with 1 input signal and 1 output signal. 8-pin socket mount, DC to DC with Input signals DC 0-100 mVolt to 0-500 Volt, 100 mVolt to 10 Volt, 0-1 mADC to 0-900 mADC and independent output of 0-1 V to 10V, 0-1 mA to 4-20 mA, 20 V sourcing mA. 3 way isolation for each signal and power. 70 millisecond response time.
$328.90
Absolute Process Instruments APD 4300 G D. 9-30 Volt, 1 Channel Signal Converter/Isolator/Transmitter Channel Plug-in with 1 input signal and 1 output signal. 8-pin socket mount, DC to DC with Input signals DC 0-100 mVolt to 0-500 Volt, 100 mVolt to 10 Volt, 0-1 mADC to 0-900 mADC and independent output of 0-1 V to 10V, 0-1 mA to 4-20 mA, 20 V sourcing mA. 3 way isolation for each signal and power. 70 millisecond response time.
$328.90
Absolute Process Instruments APD 4300 G A230. 230 Volt. 115 Volt, 1 Channel Signal Converter/Isolator/Transmitter Channel Plug-in with 1 input signal and 1 output signal. 8-pin socket mount, DC to DC with Input signals DC 0-100 mVolt to 0-500 Volt, 100 mVolt to 10 Volt, 0-1 mADC to 0-900 mADC and independent output of 0-1 V to 10V, 0-1 mA to 4-20 mA, 20 V sourcing mA. 3 way isolation for each signal and power. 70 millisecond response time.
$328.90
Absolute Process Instruments APD 4300 G. 115 Volt, 1 Channel Signal Converter/Isolator/Transmitter Channel Plug-in with 1 input signal and 1 output signal. 8-pin socket mount, DC to DC with Input signals DC 0-100 mVolt to 0-500 Volt, 100 mVolt to 10 Volt, 0-1 mADC to 0-900 mADC and independent output of 0-1 V to 10V, 0-1 mA to 4-20 mA, 20 V sourcing mA. 3 way isolation for each signal and power. 70 millisecond response time.
$570.90
Absolute Process Instruments APD 2077 D Two Channel Transmitter and isolator. Factory Configured 2 Frequency input signals, 2 Independent DC output signals. Power Supply Voltage 85-265 Volt, Inputs and outputs are all independent. Each input is filtered, amplified, and isolated. Convert and isolate Dual output transmitters. Two independent channels with full isolation with zero and span for each output. Built in I/O power supplies. Input and output LED's. Fully factory configured, specify each input type and ranges and output type and range.
$570.90
Absolute Process Instruments APD 2077 Two Channel Transmitter and isolator. Factory Configured 2 Frequency input signals, 2 Independent DC output signals. Power Supply Voltage 85-265 Volt, Inputs and outputs are all independent. Each input is filtered, amplified, and isolated. Convert and isolate Dual output transmitters. Two independent channels with full isolation with zero and span for each output. Built in I/O power supplies. Input and output LED's. Fully factory configured, specify each input type and ranges and output type and range.
$570.90
Absolute Process Instruments APD 2076 D Two Channel Transmitter and isolator. Factory Configured 1 AC input signal and 1 Frequency input signal, 2 Independent DC output signals. Power Supply Voltage 85-265 Volt, Inputs and outputs are all independent. Each input is filtered, amplified, and isolated. Convert and isolate Dual output transmitters. Two independent channels with full isolation with zero and span for each output. Built in I/O power supplies. Input and output LED's. Fully factory configured, specify each input type and ranges and output type and range.
$570.90
Absolute Process Instruments APD 2076 Two Channel Transmitter and isolator. Factory Configured 1 AC input signal and 1 Frequency signal, 2 Independent DC output signals. Power Supply Voltage 85-265 Volt, Inputs and outputs are all independent. Each input is filtered, amplified, and isolated. Convert and isolate Dual output transmitters. Two independent channels with full isolation with zero and span for each output. Built in I/O power supplies. Input and output LED's. Fully factory configured, specify each input type and ranges and output type and range.
