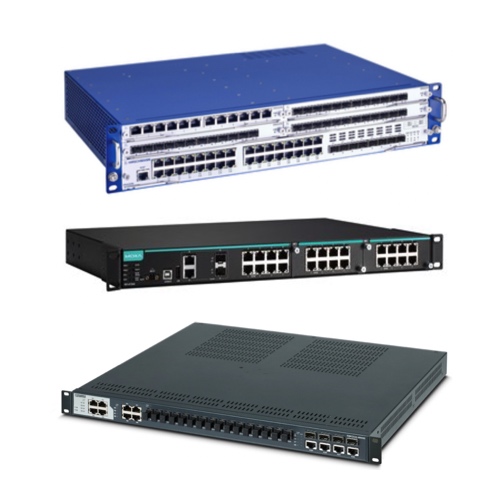

Rack Ethernet Switches

Ethernet switches are hardware devices that centralize communications among multiple connected Ethernet devices, such as computers Wi-Fi access points, IoT devices and servers, to one local area network (LAN). They manage the flow of data across the network by transmitting received network packets to one or more devices for which the packets are intended. Ethernet switches can identify every device connected to them and direct the traffic flow of the devices, which ensures the efficiency and security of the network.

Power over Ethernet (PoE) is a special networking feature that allows a network cable to carry both an electrical current and data to a device at the same time. The current and data are transmitted using different wires within the same cable. PoE switches have the PoE functionality built-in and enables the devices connected to it to communicate on the PoE network.

Unmanaged Ethernet switches have fixed configurations that cannot be changed. They are plug-and-play devices that are easily added to small networks and don’t need any special set-up. Managed Ethernet switches can manage, configure and monitor the settings of a LAN. They can control LAN traffic, prioritize certain channels and create new virtual LANs to keep smaller groups of devices segregated. Managed switches offer redundancy features that duplicate and recover data in the event of a device or network failure and priority SNMP allows for remote troubleshooting of the network, making it easier to check for issues impacting performance and implementing fixes if necessary.

Products

Products Per Page: Sort By:
$7891.56
Rack-mount managed Ethernet switch meets IEC 61850-3 and IEEE 1613. Provides eight RJ45 ports at 10/100 Mbps, 16 ST MM fiber ports at 100 Mbps and four gigabit combo ports (10/100/1000 Mbps RJ45 connection; 1000 Mbps fiber optic connection requires 1000 Mbps SFP module).
$11382.05
Rack-mount managed Ethernet switch meets IEC 61850-3 and IEEE 1613. It provides 24 SC-D SM fiber ports at 100 Mbps and four gigabit combo ports (10/100/1000 Mbps RJ45 connection; 1000 Mbps fiber optic connection requires 1000 Mbps SFP module).
$10202.19
Rack-mount managed Ethernet switch meets IEC 61850-3 and IEEE 1613. Provides eight RJ45 ports at 10/100 Mbps, 16 ST SM fiber ports at 100 Mbps and four gigabit combo ports (10/100/1000 Mbps RJ45 connection; 1000 Mbps fiber optic connection requires 1000 Mbps SFP module).
$8518.90
Rack-mount managed Ethernet switch meets IEC 61850-3 and IEEE 1613. It provides 24 SC-D MM fiber ports at 100 Mbps and four gigabit combo ports (10/100/1000 Mbps RJ45 connection; 1000 Mbps fiber optic connection requires 1000 Mbps SFP module).
$3326.38
Moxa PT-G503-PHR-PTP-HV Managed Ethernet Switch (Din Rail Mount) IEC 61850-3 Power Substation certification with a total of 1 console port Gigabit Copper RJ45 (1000 Mbps) and 3 ports including 3 Combo ports for either 3 Gigabit Copper ports RJ45 (1000 Mbps) or 3 Gigabit Fiber SFP Plug-In ports ( Use SFP-1FE/1G SFP's). Operating Temperature: -40 to 185°F. Isolated 88-300 VDC or 85-264 VAC Power Supply.
$2872.35
Moxa PT-G503-PHR-PTP-WV Managed Ethernet Switch (Din Rail Mount) IEC 61850-3 Power Substation certification with a total of 1 console port Gigabit Copper RJ45 (1000 Mbps) and 3 ports including 3 Combo ports for either 3 Gigabit Copper ports RJ45 (1000 Mbps) or 3 Gigabit Fiber SFP Plug-In ports ( Use SFP-1FE/1G SFP's). Operating Temperature: -40 to 185°F. Isolated 24-48 VDC Power Supply.
$6625.45
Moxa PT-7728-PTP-R-HV-HV Rackmount Managed Ethernet Switch system IEC 61850-3 Power Substation certification with a total of 28 ports with rear cabling, including Slots 1, 2 , and 3 for any combination of 2, 4, 6, or 8-port PM-7200 Fast Ethernet modules for up to 24 Fast Copper RJ45 or 24 Fast Fiber, and Slot 4 for 2-port or 4-port PM-7200 Gigabit Ethernet combo module for up to 4 Gigabit Copper RJ45 or 4 Gigabit Fiber SFP Plug-In, two 110-220 VDC/VAC isolated power supplies. The PowerTrans PT 7728-PTP switches are designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-7728-PTP’s redundant ring, and dual isolated redundant power supplies increase the reliability of your communications and save on cabling/wiring costs. Moxa’s PT-7728-PTP IEC 61850-3 Fast Ethernet switches support the latest version of IEEE 1588 technology (IEEE 1588v2 PTP) to fulfill precision time synchronization requirements for protection and control applications. These Ethernet switches guarantee time-stamping accuracy within 1 μs for the IEC 61850 process layer. They can be configured for 1588 v2 Master, Boundary Clock, and Transparent Clock functionality. The modular design of the PT-7728-PTP also makes network planning easy, and allows greater flexibility by letting you install up to 14 IEEE 1588 Fast Ethernet ports or up to 24 non-IEEE 1588 Ethernet ports and 4 Gigabit ports. Along with a choice of either front or rear wiring, these features together make the PT-7728-PTP suitable for a variety of industrial applications.
$6625.45
Moxa PT-7728-PTP-F-HV-HV Managed Ethernet Switch system IEC 61850-3 Power Substation certification with a total of 28 ports with front cabling, including Slots 1, 2 , and 3 for any combination of 2, 4, 6, or 8-port PM-7200 Fast Ethernet modules for up to 24 Fast Copper RJ45 or 24 Fast Fiber, and Slot 4 for 2-port or 4-port PM-7200 Gigabit Ethernet combo module for up to 4 Gigabit Copper RJ45 or 4 Gigabit Fiber SFP Plug-In, 2 Power Supplies including two 110-220 VDC/VAC isolated power supplies. The PowerTrans PT 7728-PTP switches are designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-7728-PTP’s redundant ring, and dual isolated redundant power supplies increase the reliability of your communications and save on cabling/wiring costs. Moxa’s PT-7728-PTP IEC 61850-3 Fast Ethernet switches support the latest version of IEEE 1588 technology (IEEE 1588v2 PTP) to fulfill precision time synchronization requirements for protection and control applications. These Ethernet switches guarantee time-stamping accuracy within 1 μs for the IEC 61850 process layer. They can be configured for 1588 v2 Master, Boundary Clock, and Transparent Clock functionality. The modular design of the PT-7728-PTP also makes network planning easy, and allows greater flexibility by letting you install up to 14 IEEE 1588 Fast Ethernet ports or up to 24 non-IEEE 1588 Ethernet ports and 4 Gigabit ports. Along with a choice of either front or rear wiring, these features together make the PT-7728-PTP suitable for a variety of industrial applications.
$6084.65
Moxa PT-7728-PTP-R-HV Rackmount Managed Ethernet Switch system IEC 61850-3 Power Substation certification with a total of 28 ports with rear cabling, including Slots 1, 2 , and 3 for any combination of 2, 4, 6, or 8-port PM-7200 Fast Ethernet modules for up to 24 Fast Copper RJ45 or 24 Fast Fiber, and Slot 4 for 2-port or 4-port PM-7200 Gigabit Ethernet combo module for up to 4 Gigabit Copper RJ45 or 4 Gigabit Fiber SFP Plug-In, 110-220 VDC/VAC isolated power supply. The PowerTrans PT 7728-PTP switches are designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-7728-PTP’s redundant ring, and dual isolated redundant power supplies increase the reliability of your communications and save on cabling/wiring costs. Moxa’s PT-7728-PTP IEC 61850-3 Fast Ethernet switches support the latest version of IEEE 1588 technology (IEEE 1588v2 PTP) to fulfill precision time synchronization requirements for protection and control applications. These Ethernet switches guarantee time-stamping accuracy within 1 μs for the IEC 61850 process layer. They can be configured for 1588 v2 Master, Boundary Clock, and Transparent Clock functionality. The modular design of the PT-7728-PTP also makes network planning easy, and allows greater flexibility by letting you install up to 14 IEEE 1588 Fast Ethernet ports or up to 24 non-IEEE 1588 Ethernet ports and 4 Gigabit ports. Along with a choice of either front or rear wiring, these features together make the PT-7728-PTP suitable for a variety of industrial applications.
$6084.65
Moxa PT-7728-PTP-F-HV Rackmount Managed Ethernet Switch system IEC 61850-3 Power Substation certification with a total of 28 ports with front cabling, including Slots 1, 2 , and 3 for any combination of 2, 4, 6, or 8-port PM-7200 Fast Ethernet modules for up to 24 Fast Copper RJ45 or 24 Fast Fiber, and Slot 4 for 2-port or 4-port PM-7200 Gigabit Ethernet combo module for up to 4 Gigabit Copper RJ45 or 4 Gigabit Fiber SFP Plug-In, 110-220 VDC/VAC isolated power supply. The PowerTrans PT 7728-PTP switches are designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-7728-PTP’s redundant ring, and dual isolated redundant power supplies increase the reliability of your communications and save on cabling/wiring costs. Moxa’s PT-7728-PTP IEC 61850-3 Fast Ethernet switches support the latest version of IEEE 1588 technology (IEEE 1588v2 PTP) to fulfill precision time synchronization requirements for protection and control applications. These Ethernet switches guarantee time-stamping accuracy within 1 μs for the IEC 61850 process layer. They can be configured for 1588 v2 Master, Boundary Clock, and Transparent Clock functionality. The modular design of the PT-7728-PTP also makes network planning easy, and allows greater flexibility by letting you install up to 14 IEEE 1588 Fast Ethernet ports or up to 24 non-IEEE 1588 Ethernet ports and 4 Gigabit ports. Along with a choice of either front or rear wiring, these features together make the PT-7728-PTP suitable for a variety of industrial applications.
$6625.45
Moxa PT-7728-PTP-R-48-48 Rackmount Managed Ethernet Switch system IEC 61850-3 Power Substation certification with a total of 28 ports with rear cabling, including Slots 1, 2 , and 3 for any combination of 2, 4, 6, or 8-port PM-7200 Fast Ethernet modules for up to 24 Fast Copper RJ45 or 24 Fast Fiber, and Slot 4 for 2-port or 4-port PM-7200 Gigabit Ethernet combo module for up to 4 Gigabit Copper RJ45 or 4 Gigabit Fiber SFP Plug-In, two Power Supplies including 2 48 VDC isolated power supplies. The PowerTrans PT 7728-PTP switches are designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-7728-PTP’s redundant ring, and dual isolated redundant power supplies increase the reliability of your communications and save on cabling/wiring costs. Moxa’s PT-7728-PTP IEC 61850-3 Fast Ethernet switches support the latest version of IEEE 1588 technology (IEEE 1588v2 PTP) to fulfill precision time synchronization requirements for protection and control applications. These Ethernet switches guarantee time-stamping accuracy within 1 μs for the IEC 61850 process layer. They can be configured for 1588 v2 Master, Boundary Clock, and Transparent Clock functionality. The modular design of the PT-7728-PTP also makes network planning easy, and allows greater flexibility by letting you install up to 14 IEEE 1588 Fast Ethernet ports or up to 24 non-IEEE 1588 Ethernet ports and 4 Gigabit ports. Along with a choice of either front or rear wiring, these features together make the PT-7728-PTP suitable for a variety of industrial applications.
$6625.45
Moxa PT-7728-PTP-F-48-48 Rackmount Managed Ethernet Switch system IEC 61850-3 Power Substation certification with a total of 28 ports with front cabling, including Slots 1, 2 , and 3 for any combination of 2, 4, 6, or 8-port PM-7200 Fast Ethernet modules for up to 24 Fast Copper RJ45 or 24 Fast Fiber, and Slot 4 for 2-port or 4-port PM-7200 Gigabit Ethernet combo module for up to 4 Gigabit Copper RJ45 or 4 Gigabit Fiber SFP Plug-In, two Power Supplies including 2 48 VDC isolated power supplies. The PowerTrans PT 7728-PTP switches are designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-7728-PTP’s redundant ring, and dual isolated redundant power supplies increase the reliability of your communications and save on cabling/wiring costs. Moxa’s PT-7728-PTP IEC 61850-3 Fast Ethernet switches support the latest version of IEEE 1588 technology (IEEE 1588v2 PTP) to fulfill precision time synchronization requirements for protection and control applications. These Ethernet switches guarantee time-stamping accuracy within 1 μs for the IEC 61850 process layer. They can be configured for 1588 v2 Master, Boundary Clock, and Transparent Clock functionality. The modular design of the PT-7728-PTP also makes network planning easy, and allows greater flexibility by letting you install up to 14 IEEE 1588 Fast Ethernet ports or up to 24 non-IEEE 1588 Ethernet ports and 4 Gigabit ports. Along with a choice of either front or rear wiring, these features together make the PT-7728-PTP suitable for a variety of industrial applications.
