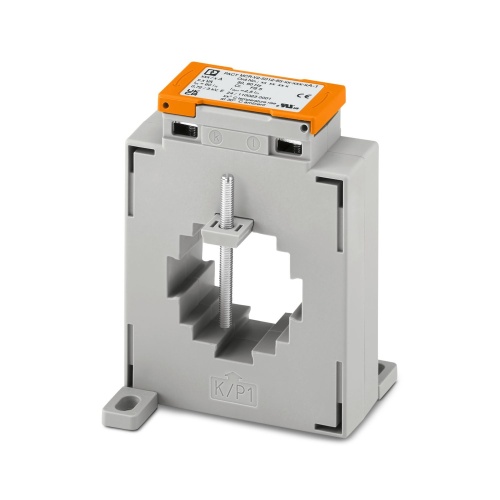

Phoenix Contact 2276117 Current transformer PACT MCR-V2-5012- 85- 150-5A-1
Normally In Stock
Code: 71429
PACT MCR-V2-5012- 85- 150-5A-1 Phoenix 2276117 Current transformer 0 Amp - 150 Amp Plug-on converters Screw connection Monitoring
Condition: New
Usually ships Same Day or Next Day$72.88
Sale Price
$60.73
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2276117 A window-type current transformer has a primary current rating of 150 A for alternating current and a secondary current rating of 5 A, with an accuracy class of 1 and a rated power of 3.75 VA.
Specifications

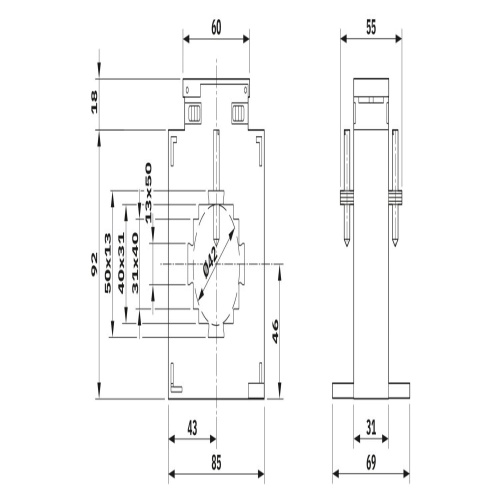

Monitoring Circular Conductor Dimensions
42 mm
Monitoring Rated Power
3.75 VA
Monitoring Connection Method
Screw Connection
Monitoring Type
Plug-On Converters
Monitoring Accuracy Class
Class 1
Manufacturer
Phoenix Contact
Component
Current Transformer
Monitoring Primary Rated Current
0 Amp - 150 Amp
Features
Protection against damage: Short circuit of the transformer by rotation of the captive terminal cover through 90°
Variable mounting with flexible fastening options
Measure peak loads reliably with a thermal nominal continuous current of 120% of the primary rated current
Increased electrical safety with high rated insulation voltagesup to 1,000 V (L-N)
Space-saving design with consistently narrow housing widths of 30 mm
Downloads
Phoenix 2276117 CAD data International.dxfPhoenix 2276117 CAD data International.pdfPhoenix 2276117 CAD data International.stpPhoenix 2276117 E-Learning English.wmvPhoenix 2276117 Manufacturers declaration English.pdfPhoenix 2276117 Manufacturers declaration International.pdfPhoenix 2276117 Package Slip International.pdfPhoenix 2276117 Tender Text English.zip
