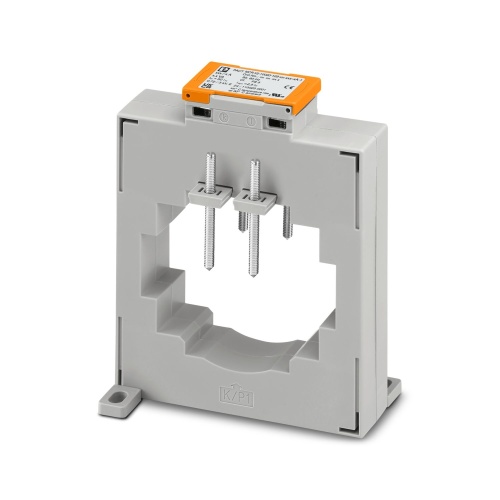

Phoenix Contact 2905889 Current transformer PACT MCR-V2-10020-129-2000-1A1
Normally In Stock
Code: 71425
PACT MCR-V2-10020-129-2000-1A1 Phoenix 2905889 Current transformer 0 Amp - 2000 Amp Plug-on converters Screw connection Monitoring
Condition: New
Usually ships Same Day or Next Day$151.67
Sale Price
$126.39
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2905889 The window-type current transformer is designed for high accuracy and reliability, featuring a 2000 A AC primary current input and a 1 A AC secondary current output. It boasts an accuracy class of 1, indicating its precise measurements, and has a maximum rated power of 15 VA.
Specifications
Monitoring Rated Power
15 VA

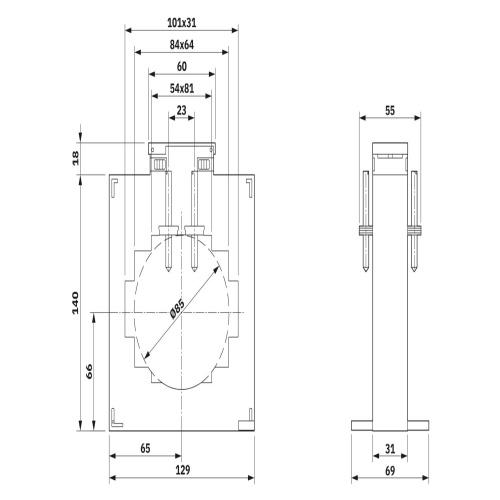

Monitoring Circular Conductor Dimensions
85 mm
Monitoring Connection Method
Screw Connection
Monitoring Type
Plug-On Converters
Monitoring Accuracy Class
Class 1
Manufacturer
Phoenix Contact
Component
Current Transformer
Monitoring Primary Rated Current
0 Amp - 2000 Amp
Features
Protection against damage: Short circuit of the transformer by rotation of the captive terminal cover through 90°
Variable mounting with flexible fastening options
Measure peak loads reliably with a thermal nominal continuous current of 120% of the primary rated current
Increased electrical safety with high rated insulation voltagesup to 1,000 V (L-N)
Space-saving design with consistently narrow housing widths of 30 mm
Downloads
Phoenix 2905889 CAD data International.dxfPhoenix 2905889 CAD data International.pdfPhoenix 2905889 CAD data International.stpPhoenix 2905889 Manufacturers declaration English.pdfPhoenix 2905889 Manufacturers declaration International.pdfPhoenix 2905889 Package Slip International.pdfPhoenix 2905889 Tender Text English.zip
