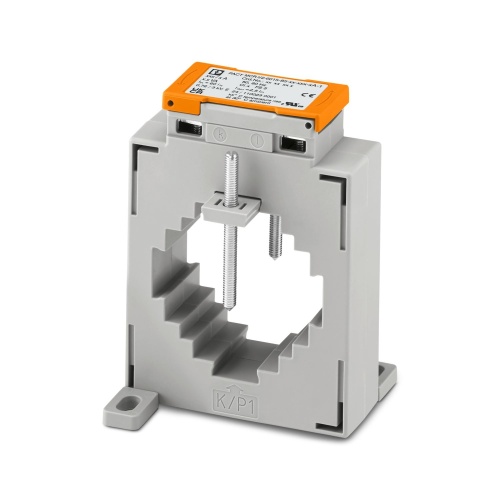

Phoenix Contact 2905885 Current transformer PACT MCR-V2-6015-85-800-1A-1
Normally In Stock
Code: 71424
PACT MCR-V2-6015-85-800-1A-1 Phoenix 2905885 Current transformer 0 Amp - 800 Amp Plug-on converters Screw connection Monitoring
Condition: New
Usually ships Same Day or Next Day$93.08
Sale Price
$77.57
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2905885 The window-type current transformer has a high capacity rating with an 800 A AC primary current and a low 1 A AC secondary current, offering precise measurement of the main circuit while keeping the output current extremely small for safe handling. Its accuracy is also top-notch, falling within Class 1, indicating extremely reliable performance. In terms of power consumption, it has a relatively low rating of 2.5 VA.
Specifications
Monitoring Rated Power
2.5 VA

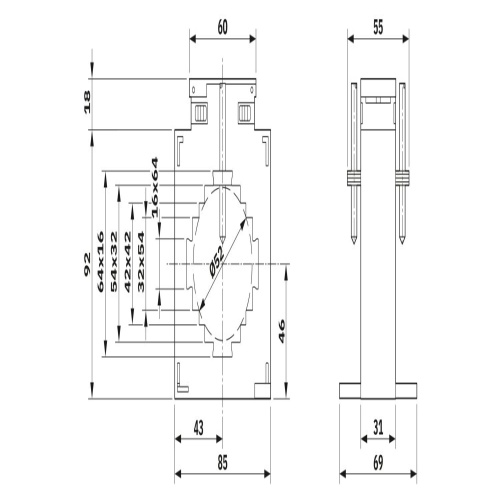

Monitoring Circular Conductor Dimensions
52 mm
Monitoring Connection Method
Screw Connection
Monitoring Type
Plug-On Converters
Monitoring Accuracy Class
Class 1
Manufacturer
Phoenix Contact
Component
Current Transformer
Monitoring Primary Rated Current
0 Amp - 800 Amp
Features
Protection against damage: Short circuit of the transformer by rotation of the captive terminal cover through 90°
Variable mounting with flexible fastening options
Measure peak loads reliably with a thermal nominal continuous current of 120% of the primary rated current
Increased electrical safety with high rated insulation voltagesup to 1,000 V (L-N)
Space-saving design with consistently narrow housing widths of 30 mm
Downloads
Phoenix 2905885 CAD data International.dxfPhoenix 2905885 CAD data International.pdfPhoenix 2905885 CAD data International.stpPhoenix 2905885 Manufacturers declaration English.pdfPhoenix 2905885 Manufacturers declaration International.pdfPhoenix 2905885 Package Slip International.pdfPhoenix 2905885 Tender Text English.zip
