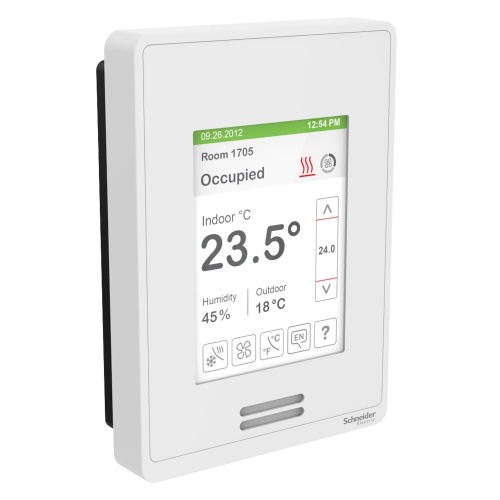

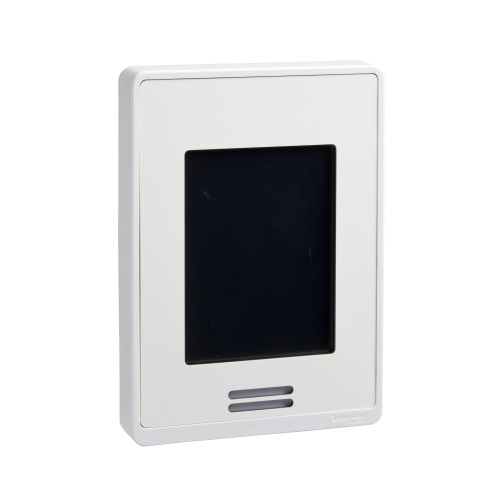

Schneider Electric SE8350U0B11 - Low-Voltage Fan Coil Room Controller & Zone Controller: BACnet MS/TP, RH sensor & control, White Case/Fascia
Normally In Stock
Code: 696430
Schneider Electric SE8350U0B11 - Low-Voltage Fan Coil Room Controller & Zone Controller: BACnet MS/TP, RH sensor & control, White Case/Fascia
Condition: New
Usually ships Same Day or Next Day$721.15
Sale Price
$600.96
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric SE8350U0B11 - Low-Voltage Fan Coil Room Controller & Zone Controller: BACnet MS/TP, RH sensor & control, White Case/Fascia
Specifications
Manufacturer
Schneider Electric
Component
Room Controller
Features
SE8300 Series room controllers are used for Low Voltage Fan Coil Unit control
The room controllers rated supply voltage range is 24 to 28V AC at 50 or 60Hz +/-15%
The rated current is 4A
The device consumption is up to 12VA
The room controller is colored white and is equiped with a communication port that uses BACnet MS/TP protocol and a PIR sensor
Its Room and Outdoor Air Temperature Display Range is between -40 and 50 oC
The measurement accuracy is +/- 0.5%
The temperature setting range is 12 to 37.5oC for cooling and 4.5 to 32 oC for heating
The room controller is equiped with 2 digital inputs, 5 analog inputs (5 to 10V), 4 analog outputs, and 5 digital outputs
The analog output voltage is 0 to 10V DC at < 5mA into > 2 kOhm resistance
The digital output rating is 28V AC 50 or 60 Hz, 0.3A, 1.5A inrush current
The product follows the following standards: IEC 61326-1: 2005, FCC part 15 subpart C, RSS 210 issue 8, FCC part 15 subpart B,,ICES-003, EN 60950-1: 2006/A2, EN 60950-1: 2013, ETSI EN 301 489-1: v1.9.2
The product follows the directives: 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive, 2014/53/EU - radio equipment directive
The ambient air temperature for operation is between 0 and 50oC
The relative humidity for operating or storage is between 0 and 75% non condensing
The humidity reading range is 10 to 90% RH non-condensing.
