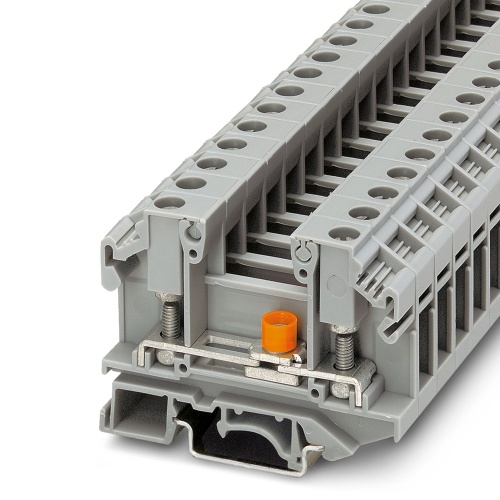

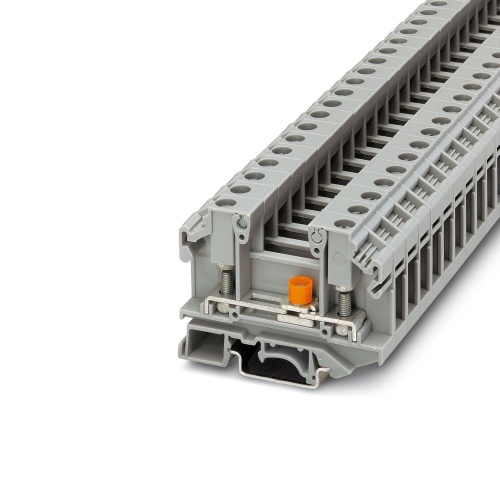

Phoenix Contact 0790446 Disconnect terminal block OTTA 6-T
Normally In Stock
Code: 62374
OTTA 6-T Phoenix 0790446 Bolt connection terminal block Bolt connection 800 V 36 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$18.52
Sale Price
$15.43
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 0790446 The terminal block requires a disconnect slide and can handle 1000V of nominal voltage and 36A of nominal current, with bolts used for connection and a rated cross section of 6mm². It is available in three mounting types (NS35/7.5, NS35/15, and NS32) and has a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Width
11 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Connection Method
Bolt Connection
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Disconnect
Removable Disconnect
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
36 Amp
Sub Component
Bolt Connection Terminal Block
Sub Component
Disconnect Terminal Block
Features
Convenient separation of circuits with a lever-type disconnect knife, isolating plug, or rotary contact
User-friendly current measurement via the testing option on either side of the disconnect point
Safe operation, as the disconnect lever is latched in the end positions
Clear identification of the disconnect point with color marking
Individual assembly with disconnect element, fuse plug, component connector, and feed-through connector
Downloads
Phoenix 0790446 CAD data International.dxfPhoenix 0790446 CAD data International.pdfPhoenix 0790446 CAD data International.stpPhoenix 0790446 Manufacturers declaration English.pdfPhoenix 0790446 Manufacturers declaration International-2.pdfPhoenix 0790446 Manufacturers declaration International.pdfPhoenix 0790446 Safety note English.pdfPhoenix 0790446 Tender Text English.zip
