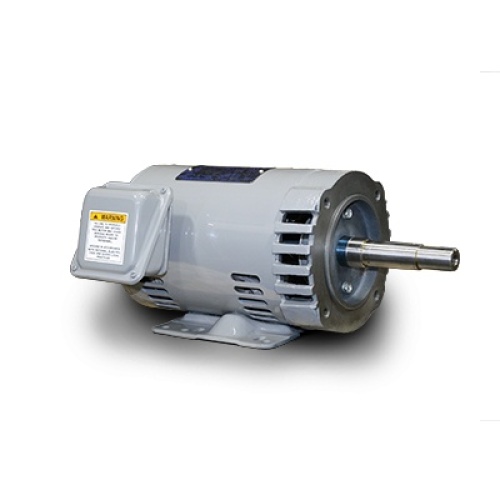

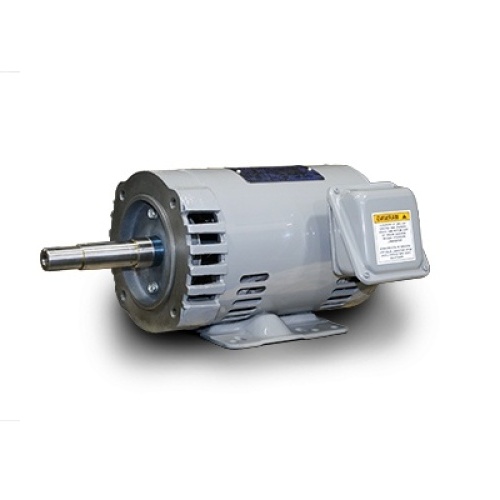

TECO DTP7/52G Motor - 7.5 HP, ODP, 230/460 VAC, 3600 RPM, 184/182T Frame
Normally In Stock
Code: 612663
TECO DTP7/52G Motor - 7.5 HP, ODP, 230/460 VAC, 3600 RPM, 184/182T Frame
Condition: New
Usually ships Same Day or Next Day$856.76
Sale Price
$713.97
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TECO DTP7/52G - ROLLED STEEL ODP WITH SRG
Specifications
Motor Horsepower
7.5 HP
Motor RPM's
3600 RPM
Motor Enclosure Type
Open Drip-Proof
Manufacturer
TECO
Motor Voltage
230/460 VAC
Motor Frame Model
184/182T
Features
Output range: 1/3–40 HP
Speeds: 3600, 1800, 1200 RPM
Enclosure: Open Drip Proof (IP22)
Voltage: 230/460 V (usable on 200 & 208 V)
Three-phase, 60 Hz with 1.15 service factor (continuous)
50 Hz with 1.0 service factor
Insulation: Class F with Class B temperature rise
NEMA Design B torque
Rolled steel frame and main conduit box
Grounding terminal inside main conduit box
Oversized rotatable conduit box (90° increments), F1 mounted
Designed for 40 °C ambient and up to 3,300 ft elevation
Bi-directional rotation
Shaft: 1045 carbon steel
Rotor: aluminum die-cast squirrel-cage
Paint system: phenolic rust-proof base with polyurethane top coat (Premium blue or High-efficiency light gray)
Double-shielded, non-regreasable pre-packed bearings (MULTEMP SRL)
Stainless steel nameplate (dual-column for 60/50 Hz units)
Inverter-rated per NEMA MG‑1.4.4.2 Part 31
PWM compatible
Inverter-duty speed range: 20:1 variable torque, 10:1 constant torque
Leads: 9 leads for ≤5 HP
12 leads for ≥7.5 HP
UL recognized (US and Canada), CSA approved, and CE marked
