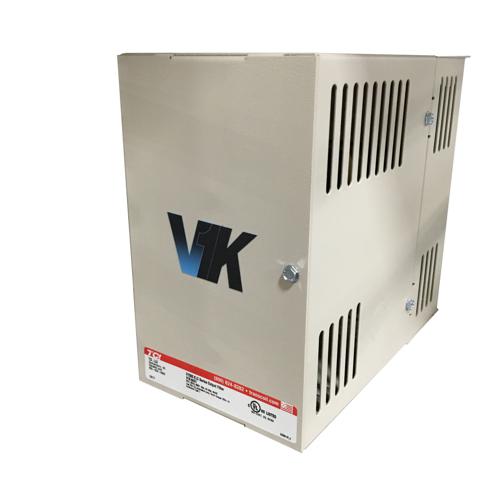

TCI V1K4A01 dv/dT Output Filter - V1K, 480V, 4A, 3 Phase, 2 HP, UL Type 1, 60 Hz
Normally In Stock
Code: 585499
TCI V1K4A01 - V1K, 600V max, 4A, 3 Phase, UL Type 1, dV/dT Output Filter, UL Listed, 2 HP, 60 Hz, 75 Watts Loss - 9" x 5.5" x 10" (HxWxD)
Condition: New
Usually Ships within 2-4 weeks$954.50
Sale Price
$795.42
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
TCI V1K4A01 - The V1K Greatly extends motor and cable life from harmful dv/dt caused by PWM VFDs and provides motor protection by limiting voltage spikes to below 1,000 V. Suitable for applications with lead lengths from 100 – 1,000 ft. Optimum performance from 2-4kHz VFD switching frequency.
Specifications
VFD Filter Voltage
480 Volt
VFD Filter Horsepower
2 HP
Manufacturer
TCI
VFD Filter Voltage Phase
Three Phase
VFD Filter Watts Loss
75 Watts
VFD Filter Frequency
60 Hz
VFD Filter Line
(V1K) Output Filter
VFD Filter Enclosure
UL Type 1
Filter Type
Dv/Dt
Features
Limits voltage spikes to below 1,000 V for applications with lead lengths up to 1,000 ft on 480 V systems.
Reduces motor heating, noise and vibration.
Prevents motor failure with protection against motor insulation breakdown.
Reduces Common Mode by a minimum of 30%.
Improves system productivity by increasing motor bearing life
208 - 600 VAC system compatibility
2 - 750 Amps range
Heavy Duty model available for higher carrier frequency (6 kHz)
Optional Thermal switch
