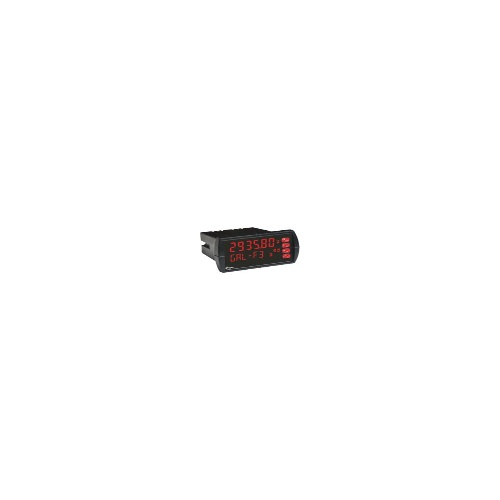

Dwyer PPM-101 Dual Line Configurable Panel Meter
Normally In Stock
Code: 569355
Dwyer PPM-101 - Pulse panel meter, 85-265 VAC, no relays, 4-20 mA transmitter.
Condition: New
Usually ships Same Day or Next Day$1159.92
Sale Price
$966.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Dwyer PPM-101 is a dual line configurable panel meter with a wide temperature range for operation and storage. It has a high accuracy of ±0.03% of calibrated span ±1 count, allowing for precise measurements. It can be powered by either 85 to 265 VAC or 12 to 24 VDC. The enclosure is NEMA 4X and IP65 front rated. The meter has removable screw terminal blocks for electrical connections and supports various output signals. The display is dual-line with 6-digit digits of different sizes. It accepts different input ranges including 0 to 20 mA, 4 to 20 mA, 0 to 5V, or ±10V inputs. The meter also includes programmable time delays and has a maximum switch rating of 3A @ 30 VDC and 125/250 VAC. It comes with free USB-based programming software.
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP65
(Instrument-Sensor) Supply Voltage
12-24 VDC
(Instrument-Sensor) Temperature Range
Storage: -40 - 185°F/-40 - 85°C
(Instrument-Sensor) Measurement Accuracy
0.03%
(Instrument-Sensor) Temperature Range
Operating: -40 - 149°F/-40 - 65°C
(Instrument-Sensor) Supply Voltage
85-265 VAC
(Instrument-Sensor) Supply Voltage
90-265 VDC
Sub Component
Dual Line Configurable Panel Meter
Component
Pulse Panel Meter
Manufacturer
Dwyer Instruments
Features
NEMA 4X / IP65 front panel
Powers the transmitter / flowmeter
Dual line 6 digit display
Free USB based programming software
Display rate and total at the same time
Two or four relays and isolated 4-20 mA output options
