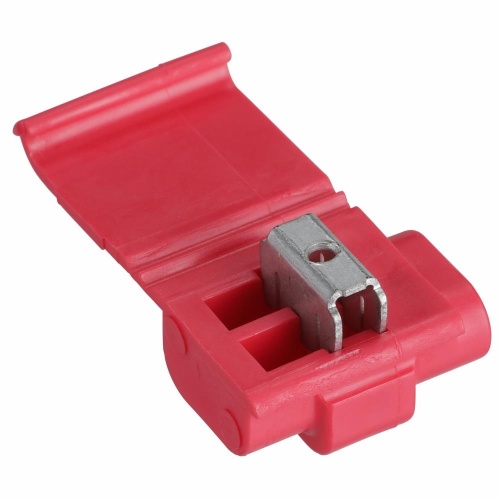

3M 7000148820 - Scotchlok™ Electrical IDC 557-BULK, Pigtail, Self-Stripping, Red, 22-16 AWG
Normally In Stock
Code: 474223
Scotchlok™ Electrical IDC 557-BULK, Pigtail, Self-Stripping, Red, 22-16 AWG - 7000148820
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$2387.09
Sale Price
$1989.24
SOLD BY THE CASE (1 Case = 5000 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ 557-BULK IDC Taps & Splices is a red connector made of polypropylene material. It has a maximum operating temperature of 105 ℃ (221 ℉) and can accommodate conductor sizes ranging from 16 AWG to 22 AWG (.34 mm² to 1.5 mm²). The insulation displacement connector features a pigtail connection type and is flame retardant. It is recommended for use with a crimping tool such as the E-9BM. - 7000148820
Specifications
Color
Red
Material
Polypropylene
Manufacturer
3M
Maximum Operating Temperature (Fahrenheit)
221 °F
Maximum Operating Temperature (Celsius)
105 °C
Sub Brand
Scotchlok™
Minimum Conductor Size (Imperial)
22 AWG
Minimum Conductor Size (Metric)
.34 mm²
Maximum Conductor Size (Imperial)
16 AWG
Maximum Conductor Size (Metric)
1.5 mm²
Component
IDC Taps & Splice
Material
Fitted Contact - Tinned Brass (Body)
Insulation Material
Polypropylene
Features
intended for use with common thermoplastic insulated wire such as: T, TF, TFF, TFN, TFFN, AWM, TEW, SAE GPT with a maximum insulation diameter of 3,5 mm
Accommodates 22 to 16 AWG solid/stranded
UL Listed and RoHS 2011/65/EU Compliant
