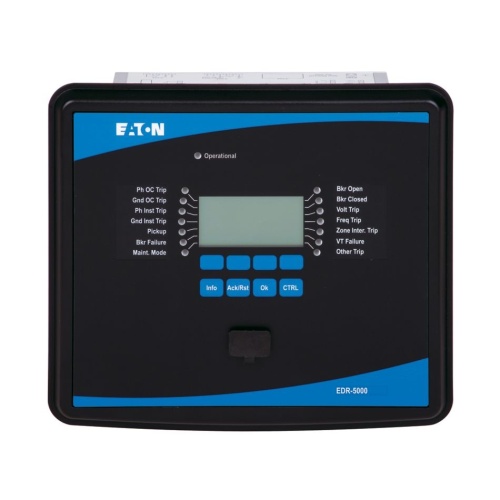

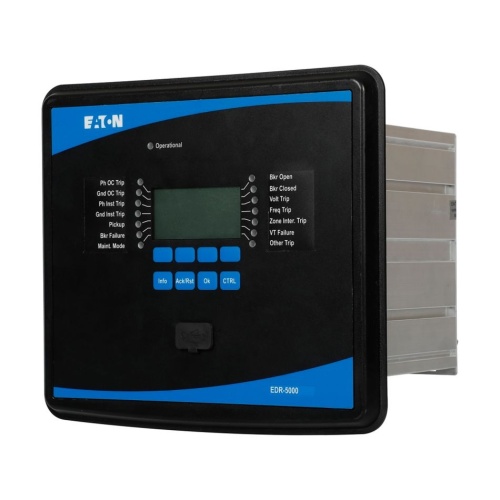

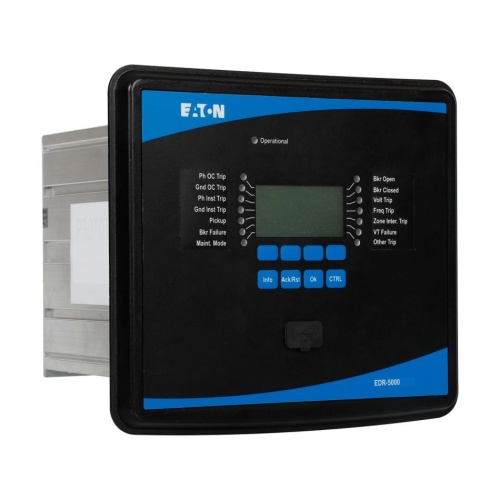

Eaton EDR-5000-2A0FB0 Distribution Protection Relay - 8 Inputs 11 Outputs

Eaton EDR-5000-2A0FB0 - The EDR-5000 Distribution Protection Relay is a versatile microprocessor-based solution designed for protecting feeder circuits at all voltage levels. It can serve as primary protection for feeders, mains, tie circuit breakers, and backup protection for transformers, high voltage lines, and differential protection. The relay features comprehensive current, voltage, and frequency protection and metering capabilities in a compact design. With multiple current and voltage inputs, it offers various protection functions such as directional overcurrent, voltage restraint, sync check, reverse power, reverse vars, and more. The relay's programmable logic functions are suitable for various transfer schemes. It provides autoreclosing logic for transient faults and a maintenance mode for enhanced safety during maintenance work. The relay offers communication ports for local networking using Modbus-RTU and optional Ethernet and IEC-61850 protocols, along with a user-friendly interface that includes programmable LEDs, a keypad, and a display for direct programming and data retrieval. Monitoring features include fault data logs, oscillography, and sequence of events reporting - Eaton E-Series Protection Relay Devices now have a warranty extension of 10 years, superseding the previous warranty of 18 months - 8.7" x 9.72" x 8.05" (HxWxD)

Specifications
Relay Load Amperage	5 Amp
Relay Load Amperage	1 Amp
Manufacturer	Eaton
Analog Outputs	0
I/O Options	IRIG-B
Sensing Inputs	Current Protection and Metering
Analog Inputs	0
Relay Mounting	Semi-flush
Sensing Inputs	Voltage Protection and Metering
Sensing Inputs	Power Protection and Metering
Inputs	8
I/O Options	Trip Coil Monitor
Communication	Modbus RTU over Fiber Optic ST
Communication	DNP3 RTU over Fiber Optic ST
Component	Distribution Protection
Outputs	11
