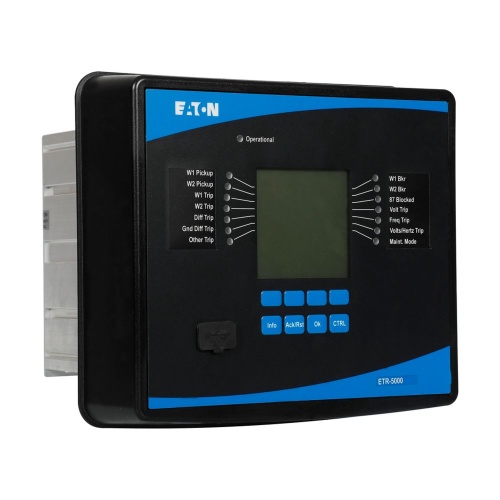

Eaton ETR-5000-2A2IA0 Transformer Protection Relay - 8 Inputs 9 Outputs
Normally In Stock
Code: 341032
Eaton ETR-5000-2A2IA0 - 5A, 1A, 40-250 Vac, 19-300 Vdc, 8, 9, over RS-485, over Ethernet RJ-45, 19-300Vdc, 40-250Vac, 50/60 Hz ,Trip Coil Monitor,Sensitive Ground Input
Condition: New
Usually ships Same Day or Next Day$22078.44
Sale Price
$18398.70
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Eaton ETR-5000-2A2IA0 - The Eaton ETR-5000 Transformer Protection Relay is a versatile microprocessor-based solution designed for safeguarding two-winding transformers across various voltage levels. Its compact design integrates an array of sophisticated protection functions including dual-slope percentage restrained and unrestrained current differential protection, restricted ground fault detection, directional overcurrent elements, negative sequence overcurrent protection, voltage protection, and overexcitation protection. The relay's extensive metering capabilities encompass measurements of current, voltage, power, energy, power factor, and harmonic distortion. Monitoring features comprise breaker status assessment, fault data logs, event sequencing, and oscillography. With control functions encompassing breaker operations and programmable logic, alongside communication support for various protocols, the ETR-5000 relay offers a comprehensive solution for ensuring the reliable and secure operation of transformers - Eaton E-Series Protection Relay Devices now have a warranty extension of 10 years, superseding the previous warranty of 18 months - 8.7" x 9.72" x 8.06" (HxWxD)
Specifications
Relay Load Amperage
5 Amp
Relay Load Amperage
1 Amp
Manufacturer
Eaton
Analog Outputs
0
I/O Options
URTD Interface
I/O Options
Sensitive Ground Input
I/O Options
IRIG-B
Sensing Inputs
Current Protection And Metering
Analog Inputs
0
Relay Mounting
Semi-Flush
Outputs
9
Sensing Inputs
Differential Protection
Sensing Inputs
Voltage Protection And Metering
Sensing Inputs
Power Protection And Metering
Inputs
8
Component
Transformer Protection
I/O Options
Trip Coil Monitor
Features
An unrestrained differential element provides fast tripping on heavy internal faults to limit catastrophic damage to the transformer and minimize risks to the remainder of the power system.
Instantaneous overcurrent elements allow quick clearing of severe internal or external (through) faults.
Front panel LCD display with background illumination allows for wide angle viewing in all light conditions, and 14 programmable LEDs provide quick and easy visual display of power on, mode of operation, alarm, and trip indication.
Maintenance Mode improves safety by providing a simple and reliable method to reduce fault clearing time and lower incident energy levels at energized panels.
Complete protection and control in a single compact case reduces panel space, wiring, and costs.
Integral test function reduces maintenance time and expense.
Zone selective interlocking improves coordination and tripping time, and saves money compared to a traditional bus differential scheme.
Trip and event recording in non-volatile memory provides detailed information for analysis and system restoration, reducing trouble shooting time and maintenance costs.
Breaker trip circuit monitoring improves the reliability of the breaker operation.
4 Voltage inputs provide 3 phase voltage protection and metering information as well as an independent single phase voltage input.
