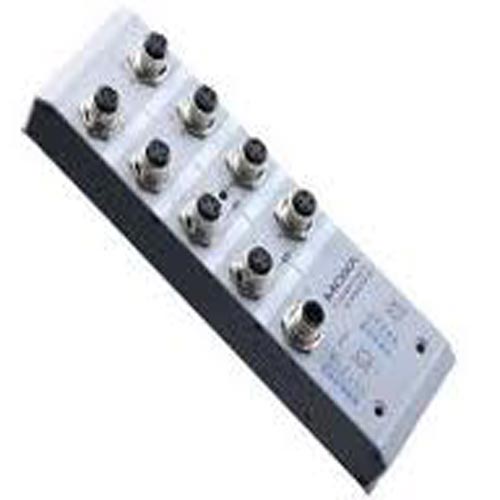

Moxa TN-5308-4PoE-48 Unmanaged Ethernet Switch

Moxa TN-5308-4PoE-48 Unmanaged Ethernet Switch with 8 Fast Copper ports M12 (100 Mbps) of which 4 are PoE ports with M12 connectors, 0 to 60 C operating temperature. Operating Voltage 46 to 50 VDC. EN50155 certified ideal for railway applications. The ToughNet TN-5308-4/8PoE series M12 unmanaged Ethernet switches are designed for industrial applications in harsh environments. The M12 connectors ensure tight, robust connections,and guarantee reliable operation, even for applications that are subject to high vibration and shock. The TN-5308-4/8PoE series Ethernet switches provide 8 fast Ethernet M12 ports with 4/8 IEEE 802.3af compliant PoE (Power-over-Ethernet) ports. The switches are classified as power source equipment (PSE) and provide up to 15.4 watts of power per port.

Specifications
Min. # Fast Copper Ports	At least 1 Fast Copper M12 Port
Certification	EN50155 Certified
Min. # Fast Copper Ports	At least 2 Fast Copper M12 Port
Min. # Fast Copper Ports	At least 3 Fast Copper M12 Port
Min. # Fast Copper Ports	At least 4 Fast Copper M12 Port
Min. # Fast Copper Ports	At least 5 Fast Copper M12 Port
Min. # Fast Copper Ports	At least 6 Fast Copper M12 Port
Min. # Fast Copper Ports	At least 7 Fast Copper M12 Port
Min. # Fast Copper Ports	At least 8 Fast Copper M12 Port
Switch Management	Unmanaged
Switch Mounting	Din Rail
Switch Voltage Input	48 VDC
Switch Power Connection	M23 Connectors
Switch Ruggedized	Vibration Resistant
Switch Temperature Range	-14F to 140F
Switch POE Ports	4 POE Fast Ports
Switch Total Ports	8
Switch Copper Ports Fast (100 Mbps)	8 M12 Ports
Switch All Ports	8 Fast Copper M12
Switch Model	Moxa EDS TN
Switch All Ports	4 Fast POE Copper M12-4 Fast Copper M12
Manufacturer	Moxa
