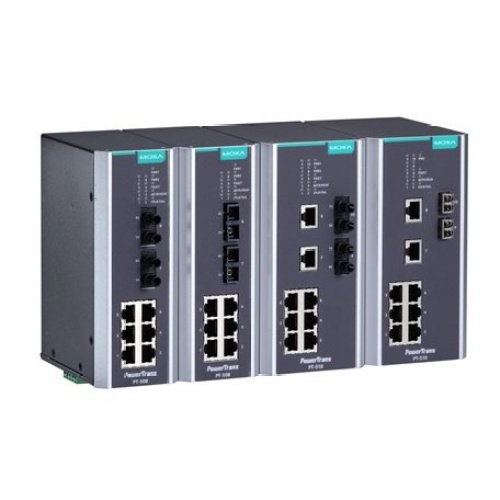

Moxa PT-510-SS-LC-HV Managed Switch

Moxa PT-510-SS-LC-HV Managed Ethernet Switch (Din Rail Mount) IEC 61850-3 Power Substation certification with a total of 10 ports including 8 Fast Copper ports RJ45 (100 Mbps) and 2 Fast Fiber ports LC Single-Mode (100 Mbps). The PowerTrans PT-508/510 is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-508/510’s optical fiber Fast Ethernet backbone, redundant ring, redundant power inputs (110-220 VDC/VAC VDC), and isolated power inputs (110-220 VDC/VAC VDC, 48 VDC, or 110/220 VDC/VAC) increase the reliability of your communications and save on cabling/wiring costs. In addition, the DIN-rail and wall-mounting design of the PT-508/510 makes network planning easy, and allows greater flexibility by letting you install up to 8/10 Fast Ethernet ports for power distribution applications.

Specifications
Min. # Fast Copper Ports	At least 1 Fast Copper RJ45 Port
Certification	IEC 61850-3 Certified
Min. # Fast Copper Ports	At least 2 Fast Copper RJ45 Port
Min. # Fast Copper Ports	At least 3 Fast Copper RJ45 Port
Min. # Fast Copper Ports	At least 4 Fast Copper RJ45 Port
Min. # Fast Copper Ports	At least 5 Fast Copper RJ45 Port
Min. # Fast Copper Ports	At least 7 Fast Copper RJ45 Port
Min. # Fast Copper Ports	At least 8 Fast Copper RJ45 Port
Switch Mounting	Din Rail
Switch Voltage Input	24 VDC
Switch Power Connection	Wire Terminals
Switch Ruggedized	Extended Temperature
Switch Management	Managed
Switch Temperature Range	-40F to 185F
Switch Voltage Input	110 VDC
Switch Voltage Input	110 VAC
Switch Voltage Input	220 VAC
Switch Voltage Input	220 VDC
Min. # Fast Fiber SC Ports	At least 1 Fast Fiber LC Port Single
Min. # Fast Fiber SC Ports	At least 2 Fast Fiber LC Port Single
Switch POE Ports	No POE Ports
Switch Copper Ports Fast (100 Mbps)	8 RJ45 Ports
Switch Total Ports	10
Switch Power Redundancy	Redundant Power Supplies
Switch Model	Moxa EDS PT
Switch Fiber Ports Single Mode Fast (100 Mbps)	2 LC Single Mode
Switch All Ports	8 Fast Copper RJ45-2 Fast Fiber LC Single
Manufacturer	Moxa
