ABB 9T10A1008G04 General Purpose Transformer - 3 Phase, 300 kVA
Normally In Stock
Code: 228578
ABB 9T10A1008G04 - 3 Phase - 300kVA - 480-208Y - 150°C - NEMA 2 - K1 - -3d - E
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$62880.79
Sale Price
$52400.66
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
ABB 9T10A1008G04 - Introducing ABB's versatile General Purpose transformers, designed to meet Three-Phase DOE 2016 efficiency standards with key advantages like quiet operation and accessible mounting for swift installation. These transformers come with IEEE and NEMA factory testing for quality assurance, and many models include lug and ground bar kits. They feature a unique core and coil design for reduced noise, rubber isolation pads for quiet operation, and easy front/back removal for servicing. NEMA 2 drip-proof enclosures are standard, with options for NEMA 3R stainless steel enclosures for outdoor use. These transformers are also seismic qualified and available with copper or aluminum windings. They find application in commercial, industrial, and more settings, including motors, lighting, and power supply network conversion.
Specifications
Transformer Voltage Phases
Three Phase
Manufacturer
ABB
Transformer VoltAmp
300 Kva
Transformer Primary Voltage In
480V
Transformer Secondary Voltage Out
208Y/120V
Component
General Purpose Transformer
Features

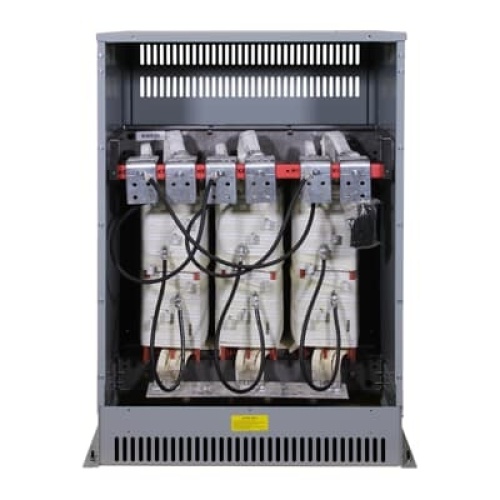

Unique core and coil design makes QL transformers among the quietest available
Core and coil assemblies are mounted on rubber isolation pads to reduce audible noise
Single-piece front/back is easily removable for service

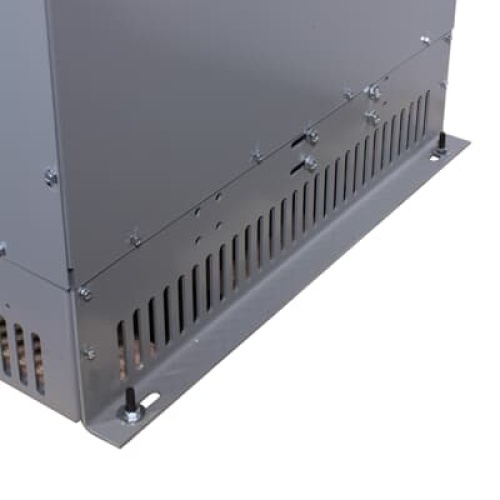

Accessible mounting flanges with front/back slotted mounting holes make installation easier
100% factory tested for shorts and coil integrity, current and loss, voltage, impedance and noise.

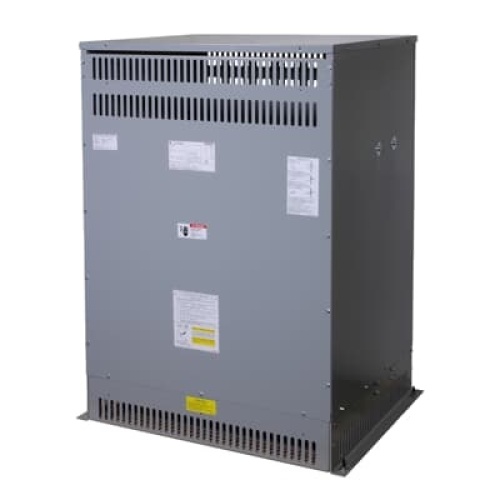

NEMA 2 drip-proof enclosure is standard. Paint color is ANSI #61 gray. Rain shield kits are available to convert standard NEMA 2 transformers to NEMA 3R for outdoor installations.
NEMA 3R stainless steel enclosure is available up to 150 kVA. To specify a stainless steel enclosure, substitute the fifth character in the ABB catalog number per the following examples:
For Aluminum coil: 9T10A1004 changes to 9T10S1004
For Copper coil: 9T10C1004 changes to 9T10Z1004
Seismic qualified to the requirements of ASCE 7-16, IEEE693-2005 and IBC-2018/CBC-2019
Copper or aluminum windings
Copper ground strap
Optional Individualized Test Reports available for IEEE performance and/or NEMA ST-20 Audible Sound Levels
