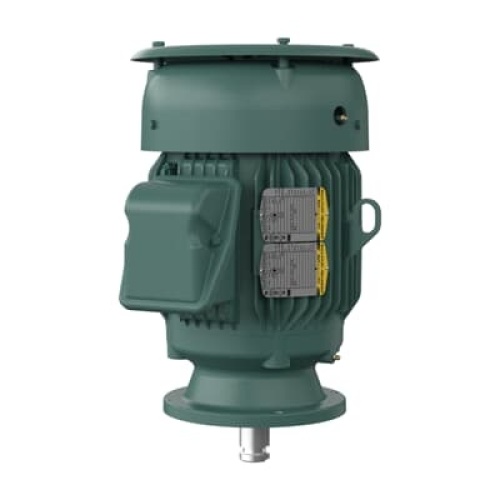

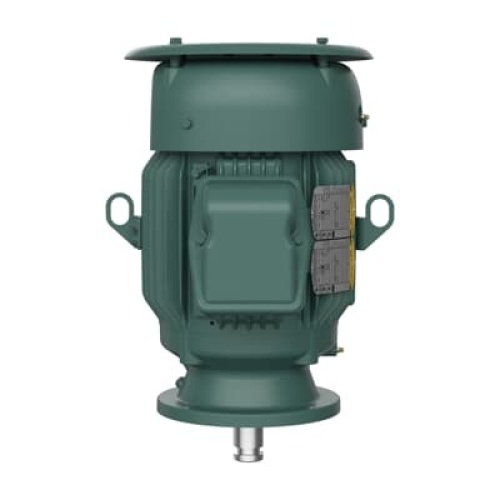

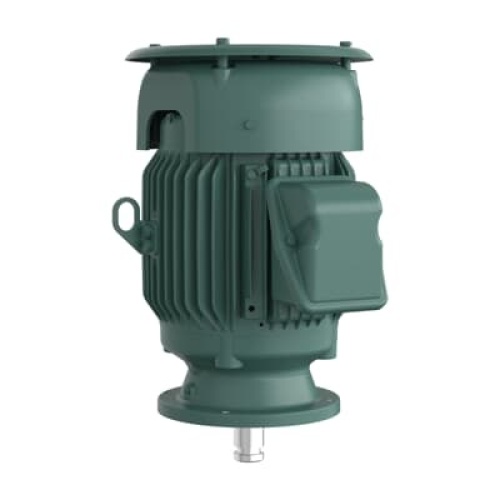

Baldor VLECP3769T 7.5HP, 3510RPM, 3PH, 60HZ, 213LP, 0732M, Totally Enclosed Fan Cooled
Normally In Stock
Code: 220978
Baldor VLECP3769T 3 460.0 V @ 60 HZ
230.0 V @ 60 HZ 7.500 HP @ 60 HZ Totally Enclosed Fan Cooled
Condition: New
CALL FOR LEAD TIME$6093.96
Sale Price
$5078.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor VLECP3769T 3 460.0 V @ 60 HZ
230.0 V @ 60 HZ 7.500 HP @ 60 HZ 3510 RPM,3600 RPM @ 60 HZ 17.200 A @ 230.0 V
8.600 A @ 460.0 V 60.00 Hz Iron Totally Enclosed Fan Cooled
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
7.5 HP
Motor Frequency
60 Hz
Motor Voltage
230 Volt
Motor Voltage
460 Volt
Motor RPM's
3600 RPM
Motor Amperage (Full Load)
17.2 Amp
Motor NEMA Design
NEMA Design H
Motor Frame Model
213LP
Motor Amperage (Full Load)
8.6 Amp
Manufacturer
Baldor-Reliance
Motor Construction
Iron
Features
Engineered specifically for vertical mounting and high thrust demands, these motors are ideal for deep well and vertical turbine pump applications.
Baldor-Reliance three phase motors are suitable for inverter use per NEMA MG1 Part 31.4.4.2
Normal, medium, and high thrust bearing options to accommodate varying axial load requirements for different vertical pump applications.
Performance enhancing features that make ABB the #1 NEMA motor brand
Baldor-Reliance® motors meet or exceed all efficiency requirements for US, Canada and Mexico regulations.
Vertical lifting provisions for ease of installations
