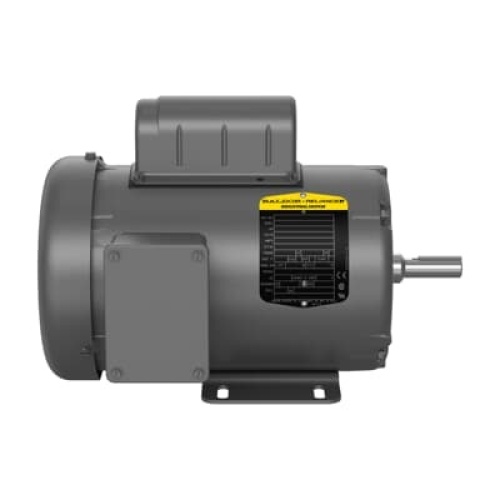

Baldor L3514-50 1.5HP, 1425RPM, 1PH, 50HZ, 56, 3535LC, Totally Enclosed Fan Cooled, F1
Normally In Stock
Code: 219023
Baldor L3514-50 1 220.0 V @ 50 HZ
110.0 V @ 50 HZ 1.500 HP @ 50 HZ Totally Enclosed Fan Cooled
Condition: New
CALL FOR LEAD TIME$1226.26
Sale Price
$1021.88
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Baldor L3514-50 1 220.0 V @ 50 HZ
110.0 V @ 50 HZ 1.500 HP @ 50 HZ 1425 RPM,1500 RPM @ 50 HZ 16 A @ 110.0 V
8 A @ 220.0 V 50.00 Hz Steel Totally Enclosed Fan Cooled
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Insulation Class
Class F Insulation
Motor Horsepower
1.5 HP
Motor Voltage Phases
1 Phase
Motor Frame Model
56
Motor NEMA Design
NEMA Design H
Motor RPM's
1500 RPM
Motor Frequency
50 Hz
Motor Voltage
110 Volt
Motor Voltage
220 Volt
Motor Amperage (Full Load)
16 Amp
Motor Amperage (Full Load)
8 Amp
Manufacturer
Baldor-Reliance
Motor Construction
Steel
Features
CE certified
Windings tied each end at every slot for rigidity
Ball bearings, high temperature insulation, copper windings.
