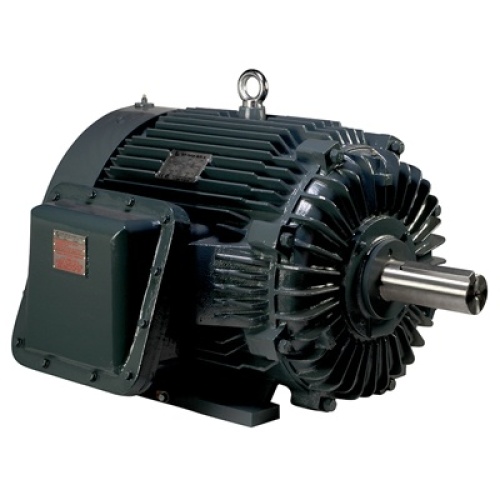

NAE PEXP365T-50-6 Electric Motor Explosion Proof, 208-230 Volt, 460 Volt, 3 Phase, 50 HP, 125 - 113 Amp, 56.5 Amp
Normally In Stock
Code: 217372
NAE PEXP365T-50-6 Electric Motor 50 HP, 1200 RPM, 365T Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEXP, Explosion Proof, Cast Iron, Prem Eff, Inverter Rated
Condition: New
Usually ships Same Day or Next Day$7761.05
Sale Price
$6467.54
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE PEXP365T-50-6 Electric Motor 50 HP, 1200 RPM, 365T Frame, 208-230/460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEXP, Explosion Proof, Cast Iron, Prem Eff, Inverter Rated
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
50 HP
Motor Frame Model
365T
Motor RPM's
1200 RPM
Motor Frequency
60 Hz
Motor NEMA Design
NEMA Design B
Motor Voltage
460 Volt
Motor Voltage
208-230 Volt
Manufacturer
North American Electric Motors
Motor Enclosure Type
TEXP
Motor Frame Construction
Cast Iron
Motor Amperage (Full Load)
125 - 113 Amp
Motor Amperage (Full Load)
56.5 Amp
Features
Service factor: 1.15 @ 60 Hz
1.0 @ 50 Hz
NEMA Design B Performance
F1/F2 reversible
Dual-drilled feet for mounting flexibility
Lifting provisions
Class F insulation system
Class B rise at full load
Class H vacuum pressure impregnation (VPI) resin for all windings
Stainless steel nameplate and zinc plated hardware, corrosion resistant epoxy paint
IP55 protection
Cast iron frame construction
Regreasable open bearings
2-year warranty
Code: 217372
NAE PEXP365T-50-6 Electric Motor Explosion Proof, 208-230 Volt, 460 Volt, 3 Phase, 50 HP, 125 - 113 Amp, 56.5 Amp
$7761.05
Sale Price
$6467.54
