Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

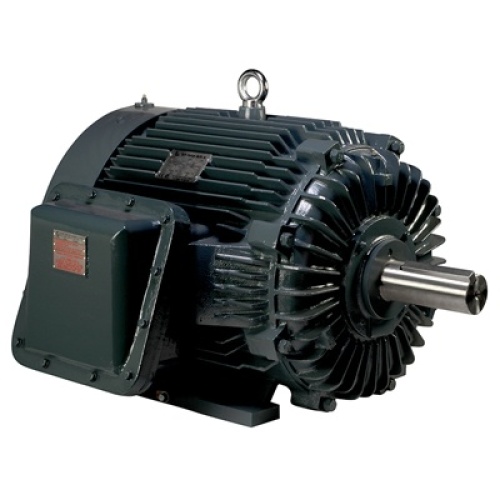

NAE PEXP449T-200-6 Electric Motor Explosion Proof, 460 Volt, 3 Phase, 200 HP, 227.5 Amp
Normally In Stock
Code: 217335
NAE PEXP449T-200-6 Electric Motor 200 HP, 1200 RPM, 449T Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEXP, Explosion Proof, Cast Iron, Prem Eff, Inverter Rated
Condition: New
Usually ships Same Day or Next Day$27990.68
Sale Price
$23325.57
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE PEXP449T-200-6 Electric Motor 200 HP, 1200 RPM, 449T Frame, 460V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEXP, Explosion Proof, Cast Iron, Prem Eff, Inverter Rated
Specifications
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Horsepower
200 HP
Motor Frame Model
449T
Motor RPM's
1200 RPM
Motor Frequency
60 Hz
Motor NEMA Design
NEMA Design B
Motor Voltage
460 Volt
Manufacturer
North American Electric Motors
Motor Enclosure Type
TEXP
Motor Amperage (Full Load)
227.5 Amp
Motor Frame Construction
Cast Iron
Features
Service factor: 1.15 @ 60 Hz
1.0 @ 50 Hz
NEMA Design B Performance
F1/F2 reversible
Dual-drilled feet for mounting flexibility
Lifting provisions
Class F insulation system
Class B rise at full load
Class H vacuum pressure impregnation (VPI) resin for all windings
Stainless steel nameplate and zinc plated hardware, corrosion resistant epoxy paint
IP55 protection
Cast iron frame construction
Regreasable open bearings
2-year warranty
