Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Phoenix Contact 1525610 Device connector front mounting SACCEC-M12FSB-2CON-M16/5,0-910
Normally In Stock
Code: 173704
Phoenix Contact 1525610 - 2 Positions - CuZn - IP67 - PROFIBUS Connection - M12
Condition: New
Usually ships Same Day or Next Day$113.26
Sale Price
$94.38
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

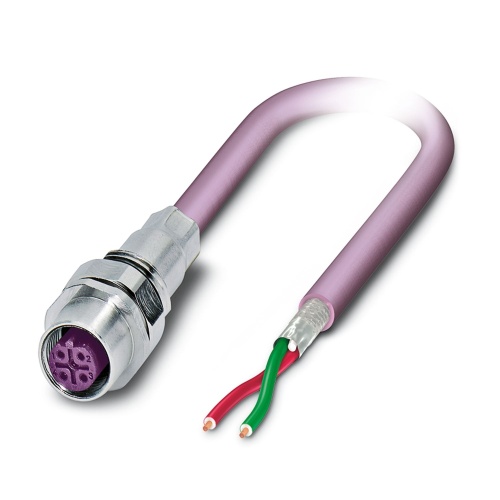

Phoenix Contact 1525610 This device connector features a front-mounted design, is shielded and available in the red lilac RAL 4001 color, with a M12 socket coded for PROFIBUS communication on the free end of the cable. The unit has a cable connection with a length of 5 meters and a cross-sectional area of 0.22 mm2. A lead-free alternative is being implemented in accordance with RoHS II regulations, with a maximum allowable lead content of less than 0.1% - this can be confirmed in advance for specific requirements.
Specifications
Connector Material
PA 6.6
Connector Material
Cuzn
Connector protection
IP67
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
2
Sub Component
Device Connector-Front Mounting
Features
Preassembled with cables in various standard lengths for immediate use
Customer-specific assemblies and cable lengths can be supplied
Sealed on the cable side for optimum tightness of seal
Cable designs for all common networks and fieldbuses
For high transmission safety: shield connection to the housing with optional EMC nut
Code: 173704
Phoenix Contact 1525610 Device connector front mounting SACCEC-M12FSB-2CON-M16/5,0-910
$113.26
Sale Price
$94.38
