Phoenix Contact 1534355 Device connector rear mounting SACCBP-M12MSB-2CON-M16/1,0-910
Normally In Stock
Code: 173698
Phoenix Contact 1534355 - Device connector, rear mounting - 2 Positions - CuZn - IP67 - Cable Connection - M12
Condition: New
Usually ships Same Day or Next Day$76.72
Sale Price
$63.93
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

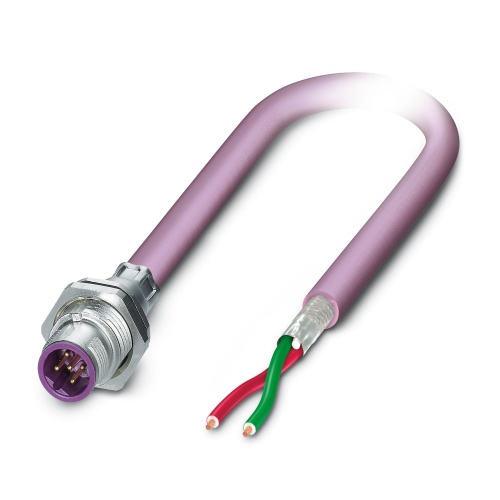

Phoenix Contact 1534355 A rear-mounted device connector featuring a PROFIBUS interface with a red lilac RAL 4001 finish, shielded and coded as B at the free end of the cable is available, utilizing an M12 pin design with a straight configuration and connecting to the rear via an M16 x 1.5 mounting point on a 1m length of cable.
Specifications
Connector Material
PA 6.6
Connector Material
Cuzn
Connector protection
IP67
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
2
Sub Component
Device Connector-Rear Mounting
Features
Preassembled with cables in various standard lengths for immediate use
Customer-specific assemblies and cable lengths can be supplied
Sealed on the cable side for optimum tightness of seal
Cable designs for all common networks and fieldbuses
For high transmission safety: shield connection to the housing with optional EMC nut
