Phoenix Contact 1534452 Device connector rear mounting SACCBP-M12MS-5CON-M16/5,0-920
Normally In Stock
Code: 173694
Phoenix Contact 1534452 - Device connector, rear mounting - 4 Positions - CuZn - IP67 - Cable Connection - SPEEDCON Locking - M12
Condition: New
Usually ships Same Day or Next Day$107.89
Sale Price
$89.91
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

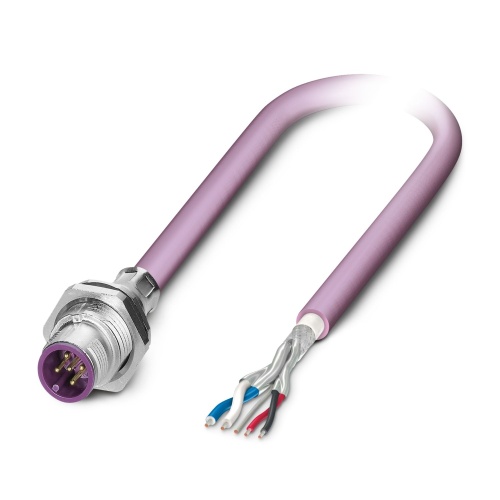

Phoenix Contact 1534452 This device connector features rear mounting and is compatible with CANopen and DeviceNet protocols, boasting a 5-position PUR halogen-free design in a red lilac RAL 4001 finish. The shielded pin provides a straight M12-SPEEDCON connection, while the cable has a free end coding "A". For secure attachment, an M16 x 1.5 rear mounting system is used and the connector itself can be connected via a 5-meter long PUR-violet cable.
Specifications
Connector Material
PA 6.6
Connector Material
Cuzn
Connector protection
IP67
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
4
Sub Component
Device Connector-Rear Mounting
Features
Preassembled with cables in various standard lengths for immediate use
Customer-specific assemblies and cable lengths can be supplied
Sealed on the cable side for optimum tightness of seal
Cable designs for all common networks and fieldbuses
For high transmission safety: shield connection to the housing with optional EMC nut
