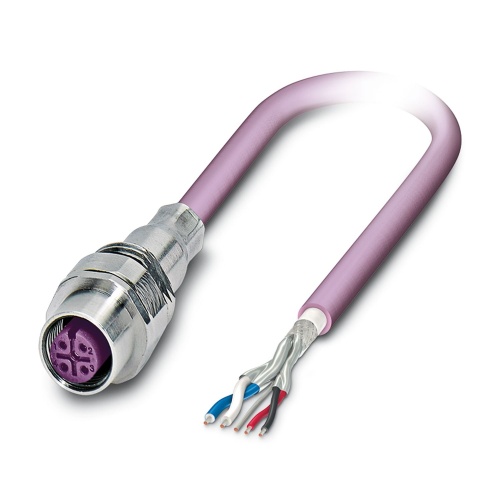

Phoenix Contact 1525704 Device connector front mounting SACCEC-M12FS-5CON-M16/ 5,0-920
Normally In Stock
Code: 173687
Phoenix Contact 1525704 - 4 Positions - CuZn - IP67 - CAN Bus, DeviceNet Connection - M12
Condition: New
Usually ships Same Day or Next Day$125.33
Sale Price
$104.44
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1525704 The device connector features a front mounting design and is compatible with CANopen and DeviceNet protocols. It has a 5-position configuration, is made of halogen-free material in a red lilac color (RAL 4001), and is shielded with a socket that connects straight to an M12 thread. The coding on the free end of the cable is A, and it can be connected using an M16 x 1.5 screw. The total length of the cable is 5 meters, and it is also compatible with both CANopen and DeviceNet protocols in a violet color.
Specifications
Connector Material
PA 6.6
Connector Material
Cuzn
Connector protection
IP67
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
4
Sub Component
Device Connector-Front Mounting
Features
Preassembled with cables in various standard lengths for immediate use
Customer-specific assemblies and cable lengths can be supplied
Sealed on the cable side for optimum tightness of seal
Cable designs for all common networks and fieldbuses
For high transmission safety: shield connection to the housing with optional EMC nut
