Phoenix Contact 1525607 Device connector front mounting SACCEC-M12FSB-2CON-M16/1,0-910
Normally In Stock
Code: 173686
Phoenix Contact 1525607 - 2 Positions - CuZn - IP67 - PROFIBUS Connection - M12
Condition: New
Usually ships Same Day or Next Day$80.75
Sale Price
$67.29
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

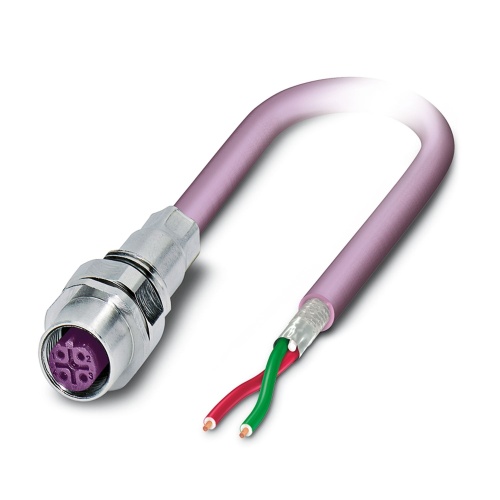

Phoenix Contact 1525607 This connector features device mounting on the front with two positions available for PUR halogen-free materials in red lilac RAL 4001 colour, it has a shielded design and uses an M12 straight socket coding B at the free cable end, suitable for front mounting on an M16 x 1.5 thread length, with a cable connection of 1m featuring 0.22mm2 cross-sectional area, compatible with PROFIBUS communication technology, note that this product is undergoing a smooth transition to a lead-free alternative in line with RoHS II regulations and can be supplied with a reduced lead content (Pb < 0.1%) if requested in advance.
Specifications
Connector Material
PA 6.6
Connector Material
Cuzn
Connector protection
IP67
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
2
Sub Component
Device Connector-Front Mounting
Features
Preassembled with cables in various standard lengths for immediate use
Customer-specific assemblies and cable lengths can be supplied
Sealed on the cable side for optimum tightness of seal
Cable designs for all common networks and fieldbuses
For high transmission safety: shield connection to the housing with optional EMC nut
