Phoenix Contact 1534494 Device connector rear mounting SACCBP-M12FS-5CON-M16/5,0-920
Normally In Stock
Code: 173677
Phoenix Contact 1534494 - Device connector, rear mounting - 4 Positions - CuZn - IP67 - Cable Connection - SPEEDCON Locking - M12
Condition: New
Usually ships Same Day or Next Day$109.18
Sale Price
$90.98
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

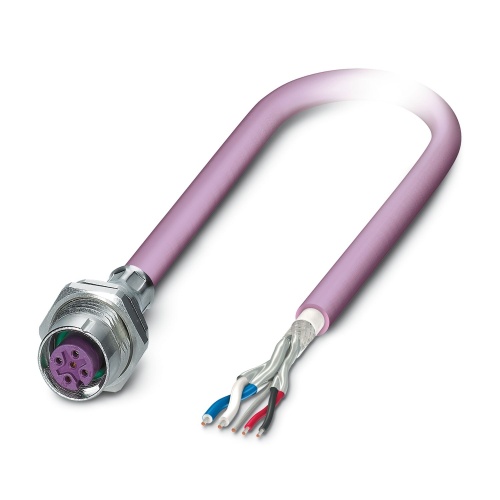

Phoenix Contact 1534494 The device connector has a rear mounting design with a 5-position configuration, attached to the back via an M12-SPEEDCON socket and secured by an M16 x 1.5 screw. The cable connection is made from a shielded, PUR halogen-free cable featuring a red lilac RAL 4001 color, with a free cable end at one end that includes CANopen and DeviceNet coding, supported by a 5m long cable length.
Specifications
Connector Material
PA 6.6
Connector Material
Cuzn
Connector protection
IP67
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
4
Sub Component
Device Connector-Rear Mounting
Features
Preassembled with cables in various standard lengths for immediate use
Customer-specific assemblies and cable lengths can be supplied
Sealed on the cable side for optimum tightness of seal
Cable designs for all common networks and fieldbuses
For high transmission safety: shield connection to the housing with optional EMC nut
