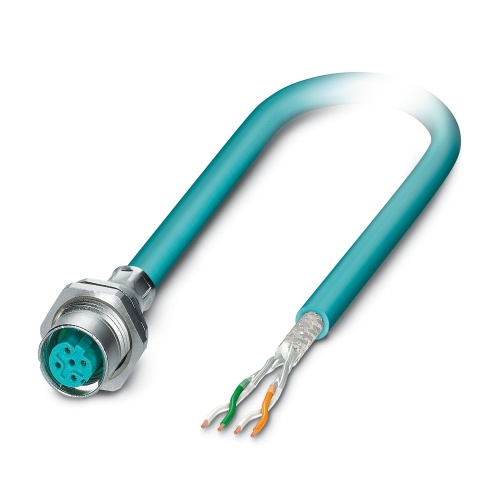

Phoenix Contact 1534591 Device connector rear mounting SACCBP-M12FSD-4CON-M16/1,0-931
Normally In Stock
Code: 173669
Phoenix Contact 1534591 - Device connector, rear mounting - 4 Positions - CuZn - IP67 - M12
Condition: New
Usually ships Same Day or Next Day$89.27
Sale Price
$74.39
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1534591 A device connector with a rear mounting design is available, featuring an Ethernet port with a CAT5 (100 Mbps) connection, a straight M12 socket, and a coding of D on the free end of the cable. The cable itself has a water blue RAL 5021 coating and is shielded for added protection. It includes a flexible 2-pair Ethernet CAT5 cable with a length of 1 meter and a rear mounting system compatible with M16 x 1.5 threads.
Specifications
Connector Material
PA 6.6
Connector Material
Cuzn
Connector protection
IP67
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
4
Sub Component
Device Connector-Rear Mounting
Features
Preassembled with cables in various standard lengths for immediate use
Customer-specific assemblies and cable lengths can be supplied
Sealed on the cable side for optimum tightness of seal
Cable designs for all common networks and fieldbuses
For high transmission safety: shield connection to the housing with optional EMC nut
