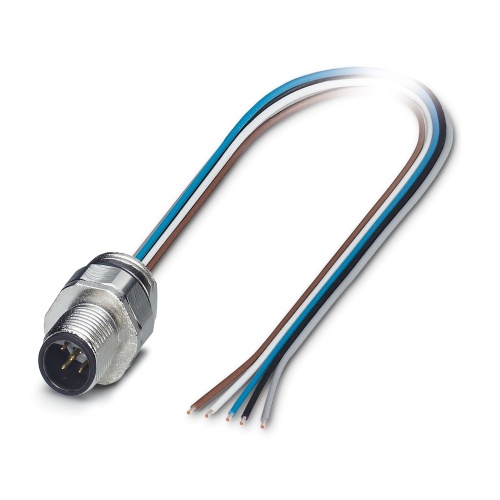

Phoenix Contact 1515057 Device connector front mounting SACC-EC-M12MSB-5CON-PG9/0,5
Normally In Stock
Code: 173663
Phoenix Contact 1515057 - 5 Positions - CuZn - IP67 - Individual Wire Connection - Standard Locking - M12
Condition: New
Usually ships Same Day or Next Day$31.24
Sale Price
$26.03
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1515057 This connector features a device connector front mounting option and is part of a universal design with five positions. It uses M12-Standard pins with coding B on the free end of the cable for easy identification. The connector is mounted in front, using a Pg9 positioning system, and has individual wires that are 0.5 meters long and have a cross-sectional area of 0.34 mm2.
Specifications
Connector Material
Cuzn
Connector protection
IP67
Component
Connector
Manufacturer
Phoenix Contact
Number of Positions
5
Sub Component
Device Connector-Front Mounting
Connector Material
PA 66
Features
Preassembled with litz wires for immediate use
Customer-specific assemblies and litz wire lengths available
Sealed on the litz wire side for optimum leak-tightness
For high transmission safety: shield connection to the housing with optional EMC nut
