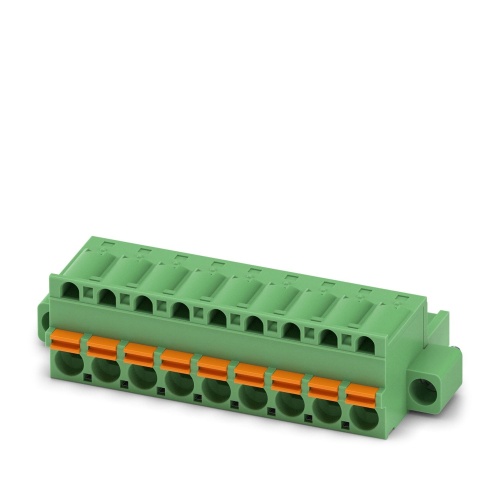

Phoenix Contact 1873278 The specified PCB connector features a nominal cross-sectional area of 2.5 mm² and is identified by its green color. It has a rated current of 12 A and a maximum operating voltage of 320 V at II/II ratings. The connector's contact surface is tin-plated, utilizing a socket connection type with nine potential points. Each row consists of nine individual positions, providing a total of nine connections. This particular component falls within the FKC 2,5/...-STF product range and boasts a pitch of 5.08 mm. The connection method employs push-in spring connections, while the conductor-to-PCB connection direction is perpendicular to zero degrees. Additionally, it incorporates a locking clip and utilizes the COMBICON MSTB 2,5 plug-in system for secure mounting. The connector is packaged in cardboard, secured by a screw flange and featuring a screw locking mechanism for added stability.
