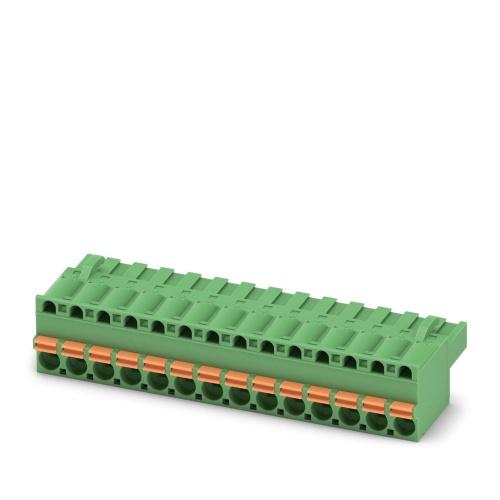

Phoenix Contact 1902233 PCB connector FKCT 2,5/14-ST-5,08
Normally In Stock
Code: 144529
Phoenix Contact 1902233 FKCT 2,5/14-ST-5,08 ,Copper Alloy,PA,I,PBT Printed-circuit board connector
Condition: New
Usually ships Same Day or Next Day $22.73
Sale Price
$18.94
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1902233 A PCB connector with a nominal cross-sectional area of 2.5 mm² has a green color and is rated for 12 A of current, with a maximum voltage rating of 320 V. The contact surface features tin (Sn) material and employs a socket connection type, accommodating 14 potentials arranged in one row with 14 push-in spring connections, featuring no locking clip and utilizing the COMBICON MSTB 2.5 system for plug-in functionality, packaged within cardboard without mounting or additional accessories.
Specifications
Connector Amperage
12 Amp
Connector Material
PBT
Connector Voltage
4 Kv
Connector Material
I
Connector Material
PA
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Connector Voltage
.21 Kv
Number of Connections
14
Number of Positions
14
Component
PCB
Sub Component
PCB Plug
Connector Voltage
320 Volt
Connector Voltage
630 Volt
Features
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive operation due to color-coded actuating push button
Optimized for tight installation situations: operation and conductor connection from one direction
Can be combined with the MSTB 2,5 range
