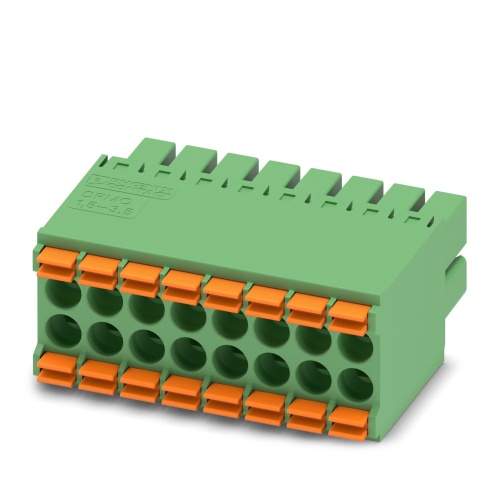

Phoenix Contact 1790166 PCB connector DFMC 1,5/ 8-ST-3,5
Normally In Stock
Code: 144441
Phoenix Contact 1790166 DFMC 1,5/ 8-ST-3,5 ,Copper Alloy,PA,I,PBT Printed-circuit board connector
Condition: New
Usually ships Same Day or Next Day $15.23
Sale Price
$12.69
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1790166 The specified PCB connector has a nominal cross-sectional area of 1.5 mm² and is colored green, with a maximum allowed current of 8 A and a rated voltage of 160 V. It features a contact surface made of tin, uses a socket connection type, offers 16 potentials, and consists of 2 rows with 8 positions each. The connector has push-in spring connections, is mounted by inserting it into the base strip, and allows for conductor-to-PCB connection in a 0° direction, utilizing a COMBICON DFMC 1,5 plug-in system without locking or mounting methods, and is packaged in cardboard.
Specifications
Connector Amperage
8 Amp
Connector Material
PBT
Connector Voltage
2.5 Kv
Connector Voltage
2.95 Kv
Connector Voltage
1.39 Kv
Connector Material
I
Connector Material
PA
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Number of Positions
8
Number of Connections
16
Component
PCB
Sub Component
PCB Plug
Connector Voltage
160 Volt
Connector Voltage
320 Volt
Features
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive operation due to color-coded actuating push button
Optimized for tight installation situations: operation and conductor connection from one direction
