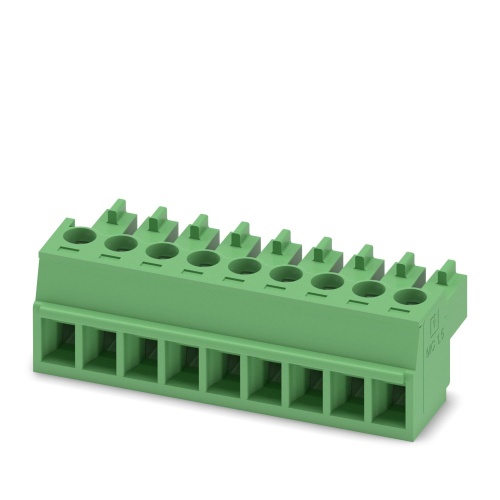

Phoenix Contact 1803646 PCB connector MC 1,5/ 9-ST-3,81
Normally In Stock
Code: 144222
Phoenix Contact 1803646 MC 1,5/ 9-ST-3,81 ,Copper Alloy,PA,I Printed-circuit board connector
Condition: New
Usually ships Same Day or Next Day $11.95
Sale Price
$9.96
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1803646 This PCB connector features a nominal cross-sectional area of 1.5 mm² and is coloured green. It's rated for a maximum current of 8 A and can handle up to 160 V, with copper surfaces on both sides of the contact area. The connector has nine pins, arranged in a single row with screw-in connections using tension sleeves, and can be secured with either L slotted screws or plain M3 screws.
Specifications
Connector Amperage
8 Amp
Connector Voltage
2.5 Kv
Connector Voltage
2.95 Kv
Connector Voltage
1.39 Kv
Connector Material
I
Connector Material
PA
Connector Material
Copper Alloy
Manufacturer
Phoenix Contact
Number of Connections
9
Number of Positions
9
Component
PCB
Sub Component
PCB Plug
Connector Voltage
160 Volt
Connector Voltage
320 Volt
Features
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
