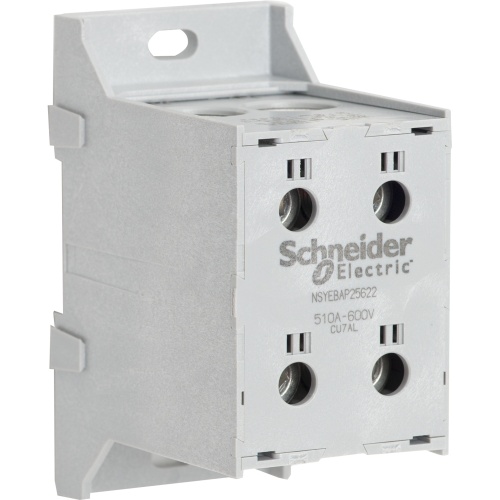

Schneider Electric NSYEBAP25622 Power distribution block, Linergy, enclosed, 510A CU, 410A AL, 600 V, 2 line side lug, 2 load side lug, AL lug, panel
Normally In Stock
Code: 113787
Schneider NSYEBAP25622 NSYEB Power Distribution Block 4.39 in (111.51 mm 510 A copper, 410 A aluminium Panel 2 line, 2 load 600 V AC/DC Circuit Protectors/Fuseholders/Terminal Blocks IEC Enclosed Power Distribution Blocks Enclosed Power Distribution Blocks
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$278.65
Sale Price
$232.21
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Power distribution block, Linergy, enclosed, 510A CU, 410A AL, 600 V, 2 line side lug, 2 load side lug, AL lug, panel
Specifications
Terminal Block Voltage Rating
600 Volt
Terminal Block Number of Connections
2
Terminal Block Connection Method
Panel
Terminal Block Amperage
410 Amp
Terminal Block Amperage
510 Amp
Manufacturer
Schneider Electric
Component
Terminal Block
Features
NSYEB power distribution blocks are enclosed IEC versions of our NEMA 9080 power distribution blocks, which are finger safe
The terminals of these power terminal blocks are finger safe from the front according to IP20
They are one pole modular units with an interlocking dovetail feature that enables ganging of the blocks to create multipole configurations according to application requirements
This block has a Short-Circuit Current Ratings (SCCR) of up to 100 kA with fuses and circuit breakers
Refer to the catalog for details on this
The lugs in these blocks are available with either copper or aluminum
This block has a tin plated aluminum lug
The line side lug of this block is rated to 510A at 600 V when copper wire is used and 410A at 600 V when aluminum wire is used
Each of the two line side terminals will accept 6 AWG to 250 kcmil copper or aluminium wires
Each of the two load side terminals will accept 6 AWG to 250 kcmil copper or aluminium wires
This block can be mounted directly to a panel
This block is 4.39 inches tall, 2.26 inches wide and 3.14 inches deep
This block is UL Listed, CSA cerified and RoHS compliant.
