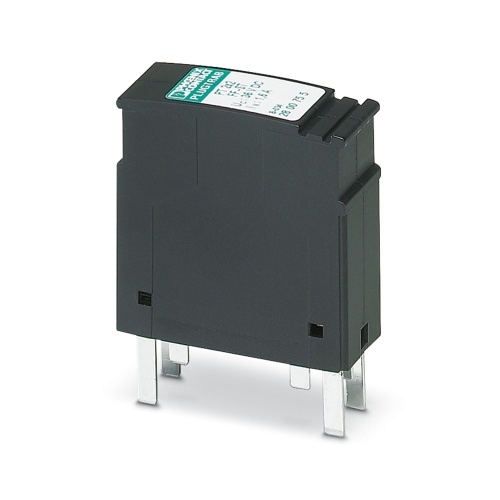

Phoenix Contact 2839211 Surge protection plug PT 4- 5DC-ST
Normally In Stock
Code: 10527
PT 4- 5DC-ST Phoenix Contact Transient Surge Suppressor PT 4- 5DC-ST Protective plug PT with protective circuit for a 4-core floating signal circuit. Nominal voltage: 5 V DC Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground
Condition: New
Usually ships Same Day or Next Day$365.50
Sale Price
$304.58
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

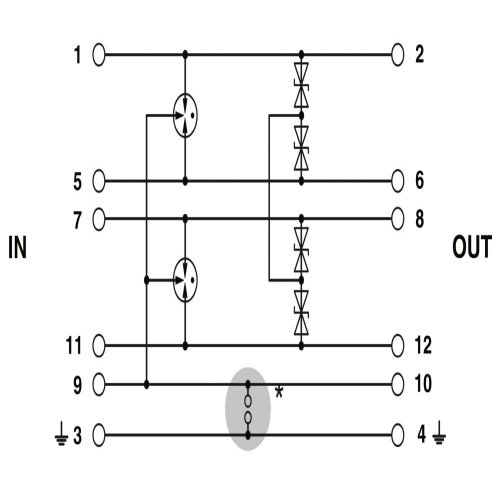

Phoenix Contact 2839211 A protective plug designed to safeguard a 4-core floating signal circuit operates at a nominal voltage of 5V DC, utilizing an integrated protective circuit that provides enhanced protection and safety features.
Specifications
Fault Warning
None
Direction of Action
Line-Line
Direction of Action
Line-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Line Voltage
5 Volt
Surge Protector Type
Surge Protection For Measurement And Control Technology
Nominal Discharge Current
10 Ka
Component
Surge Protection Plug
Features
Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
Maximum ease of maintenance, thanks to the 2-piece design
Easy selection for all possible demands in MCR applications with a complete product portfolio
The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
Downloads
Phoenix 2839211 CAD data International.dxfPhoenix 2839211 CAD data International.pdfPhoenix 2839211 CAD data International.stpPhoenix 2839211 CAD Drawing.zipPhoenix 2839211 EPLAN Macro International.z13Phoenix 2839211 EPLAN Macro International.zipPhoenix 2839211 Flyer English.pdfPhoenix 2839211 Manufacturers declaration International.pdfPhoenix 2839211 Package Slip International.pdfPhoenix 2839211 Product Information English.pdfPhoenix 2839211 Software International.zipPhoenix 2839211 Spec Sheet.pdfPhoenix 2839211 Surge Protection English.pdfPhoenix 2839211 Tender Text English.zipPhoenix 2839211 User Manual.pdf
