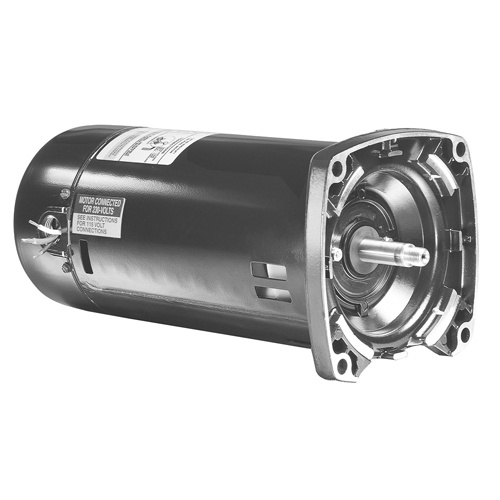

Nidec JS100UPR - ODP, 1 HP, 1 Phase, 230 Volt

Nidec JS100UPR - Special Application Single Phase, Open Drip Proof (ODP) Jet Pump motor, available in square flange and C-face configurations, is designed for applications such as jet pumps, booster pumps, centrifugal pumps, and lawn sprinkler pumps. Key features include a 303 stainless steel shaft with specific threading (7/16-20 UNF2A for C-face and 1/2-20 UNC-2A for square flange), ball bearings with a locked drive end bearing, and continuous duty operation at 60 Hz. The motor also has an EZ-Access motor cover, operates in a 40°C ambient environment, and includes an automatic reset thermal overload protector. It features a round frame without a base, NEMA® 56C C-face or square flange mounting, and power leads for proper connection to a pressure switch. Additionally, it has a voltage selector switch for models ending in "-2V" and "UPR".

Specifications
Motor Horsepower	1 HP
Motor Frequency	60 Hz
Motor Voltage	230 Volt
Motor RPM's	3600 RPM
Motor Voltage Phases	1 Phase
Manufacturer	Nidec
Motor Enclosure Type	Open Drip Proof
Motor Frame Model	48Y
Motor Construction	Rolled Steel
