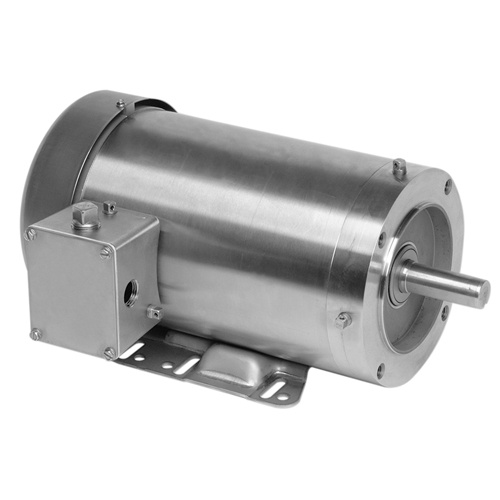

Nidec WDS3P1A14C - TEFC, 3 HP, 3 Phase, 460 Volt

Nidec WDS3P1A14C - All Stainless Steel Washdown Three Phase motor, designed for applications in food processing, canning, meat packing, bakeries, dairies, and pharmaceutical manufacturing, features a robust construction entirely made of stainless steel. With a 40°C ambient rating and NEMA® Design B compliance, it ensures reliability in diverse environments. Its INVERTER GRADE® insulation system meets NEMA® MG-1 Part 31 standards, while a 303 stainless steel shaft enhances durability. The motor incorporates multiple stainless steel T-type drains, is Totally Enclosed Fan Cooled (TEFC) in most cases, and includes rust inhibitor on the rotor. BISSC® certification ensures compliance with industry sanitation standards, while VBX® Bearing Isolators by Inpro/Seal and double-sealed ball bearings enhance longevity. Other features include a laser-etched oversized nameplate, RTV-sealed lead exit holes, moisture-resistant gasketed conduit box with NPT lead holes, and easy-to-read connection leads, ensuring ease of maintenance and sanitation in demanding environments.

Specifications
Motor Enclosure Type	Totally Enclosed Fan Cooled
Motor Voltage Phases	3 Phase
Motor Horsepower	3 HP
Motor Frame Model	145TC
Motor Frequency	60 Hz
Motor Voltage	460 Volt
Motor RPM's	3600 RPM
Manufacturer	Nidec
Motor Construction	Rolled Steel
