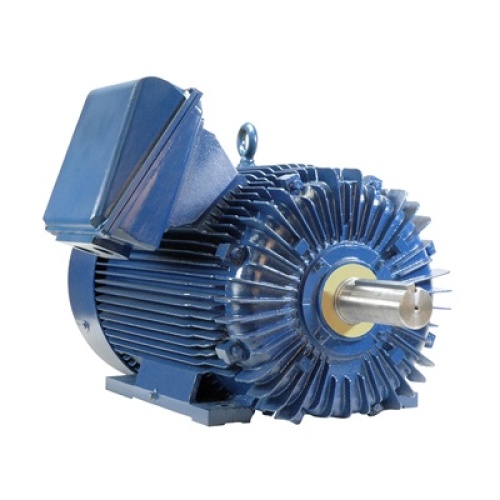

NAE PE587UZ-350-6C-BB Electric Motor General Purpose Heavy Duty Cast Iron, 460 Volt, 3 Phase, 350 HP, 390.4 Amp

NAE PE587UZ-350-6C-BB General Purpose Heavy Duty Cast Iron Electric Motor used for > Service factor: 1.15 @ 60 Hz; 1.0 @ 50 Hz; Suitable for 575V @ 1.0; NEMA Design B Performance/ High starting torgue; F1/F2 reversible; Dual-drilled feet for mounting flexibility; Lifting provision. Class F insulation system; Class B rise at full load; Class H vacuum pressure impregnation (VPI) resin for all windings; Corrosion-resistant epoxy paint and stainless steel nameplate and zinc plated hardware; IP55 protection; Condensation drain with plugs. Sealed bearings through 215T frame, regreasable open bearings on 254T frame and above; insulated bearings on ODE available on 444T frame and above; 3-year warranty (extended warranty available)

Specifications
Motor Enclosure Type	Totally Enclosed Fan Cooled
Motor Voltage Phases	3 Phase
Motor Insulation Class	Class F Insulation
Motor Horsepower	350 HP
Motor RPM's	1200 RPM
Motor Frequency	60 Hz
Motor Voltage	460 Volt
Manufacturer	North American Electric Motors
Motor Frame Construction	Heavy Duty Cast Iron
Motor NEMA Design	NEMA Design C
Motor Frame Model	587UZ
Motor Amperage (Full Load)	390.4 Amp
