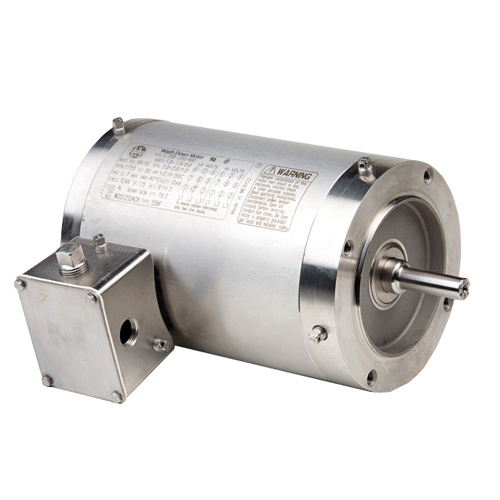

Nidec WDP10P2AC - TEFC, 10 HP, 3 Phase, 460 Volt

Nidec WDP10P2AC - Paint Free Washdown Three Phase motor is engineered for demanding environments in food processing, canning, meat packing, bakeries, dairies, and pharmaceutical manufacturing. Its features include an INVERTER GRADE® INSULATION SYSTEM meeting NEMA® MG-1 PART 31 standards, ensuring reliable performance. BISSC® certification guarantees compliance with sanitation standards, while VBX® Bearing Isolators by Inpro/Seal enhance longevity. The motor's 303 stainless steel shaft, multiple stainless steel T-type drains, and double contact sealed ball bearings ensure durability and ease of maintenance. It boasts a laser-etched oversized nameplate, Totally Enclosed Fan Cooled (TEFC) design, RTV-sealed lead exit, and moisture-resistant gasketed conduit box. With a stainless steel frame and rust inhibitor on the rotor, it withstands harsh conditions. Operating at a 40°C ambient temperature and complying with NEMA® Design B standards, this motor provides efficient and sanitary performance for various industrial applications.

Specifications
Motor Enclosure Type	Totally Enclosed Fan Cooled
Motor Voltage Phases	3 Phase
Motor Horsepower	10 HP
Motor Frame Model	215TC
Motor Frequency	60 Hz
Motor Voltage	460 Volt
Motor RPM's	1800 RPM
Manufacturer	Nidec
Motor Construction	Rolled Steel
