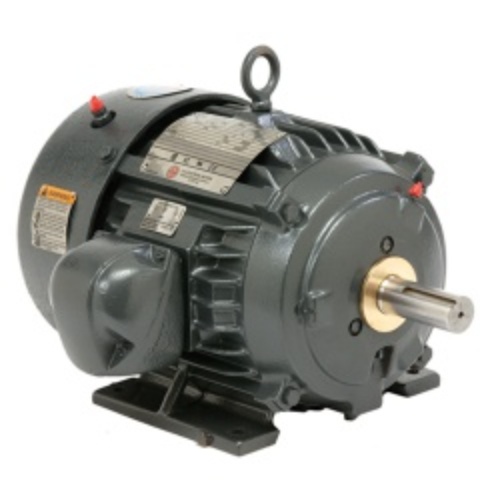

Nidec 8P400P1CS - TEFC, 400 HP, 3 Phase, 460 Volt

Nidec 8P400P1CS - General Purpose Three Phase, Totally Enclosed Fan Cooled (TEFC) 841 PLUS® motor is designed for constant speed and inverter duty applications in various industries, including petro-chemical, pulp & paper, automotive, mining, and waste treatment. It features an INVERTER GRADE® insulation system that meets NEMA® MG-1 Part 31 standards, with Class F insulation and Class B rise at full load. The motor boasts an all cast iron construction with an IP55 enclosure, corrosion-resistant paint, and VBXX® bearing isolators for IP66 bearing protection. Additional features include regreasable open bearings, epoxy-coated rotor, and a 1.15 service factor on sine wave and 1.0 on inverter power. It supports 20:1 variable torque and 5:1 constant torque on inverter power, precision balance, and has a 5-year warranty. The motor also meets or exceeds IEEE 841 Standard 2009 and includes various conversion kits and provisions for enhanced versatility and durability.

Specifications
Motor Enclosure Type	Totally Enclosed Fan Cooled
Motor Voltage Phases	3 Phase
Motor Insulation Class	Class F Insulation
Motor Horsepower	400 HP
Motor Frame Model	449TS
Motor Frequency	60 Hz
Motor Voltage	460 Volt
Motor RPM's	3600 RPM
Motor Construction	Cast Iron
Manufacturer	Nidec
