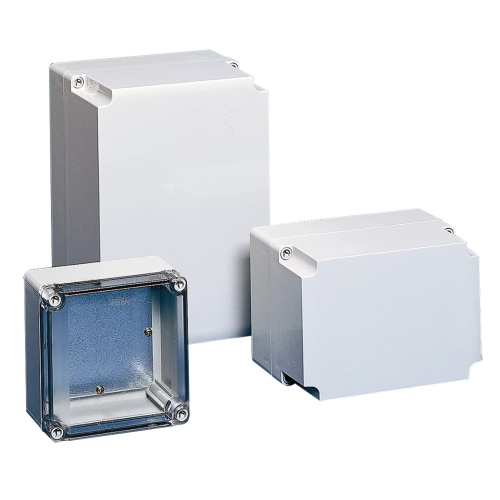

Hoffman Q18188PCE QLINE E Non-Metallic Polycarbonate Enclosure
Hoffman Q18188PCE Enclosure 6.65 x 6.65 x 2.64 inch (HxWxD) Polycarbonate QLINE E Type 4x Opaque Enclosure with Screw Cover. (DOES NOT INCLUDE BACK PANEL)
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day (DOES NOT INCLUDE BACK PANEL)
Price: $121.94
Sale Price:
$89.16
Hoffman Q18188PCE Enclosure 6.65 x 6.65 x 2.64 inch (HxWxD) Polycarbonate QLINE E Type 4x Opaque Enclosure with Screw Cover.
| Specifications | |
| Component | Non-Metallic Enclosure |
| Enclosure Environment Rating | Outdoor-Indoor |
| Enclosure Hinge Type | Standard Hinge |
| Enclosure Lock Type | Padlocking |
| Enclosure Interior Color | Gray |
| Enclosure Composition | Polycarbonate |
| Enclosure Depth | 2.65" |
| Enclosure NEMA Rating | NEMA Type 4 |
| Enclosure NEMA Rating | NEMA Type 4X |
| Enclosure Width | 6.63" |
| Line | Qline |
| Manufacturer | Hoffman |
| Enclosure Height | 6.75" |
| Enclosure Door Type | Solid |
| Enclosure Mount Type | Wall Mount |
| Enclosure Latch Type | Screw |
| Enclosure Number of Doors | 1 Door |
| Enclosure NEMA Rating | NEMA Type 12 |
| Enclosure NEMA Rating | NEMA Type 13 |
| Enclosure NEMA Rating | NEMA Type 6 |
- Cover includes a molded-in wire lead hole
- Polycarbonate and ABS material is easily punched, drilled, filed or sawed
- Cross-point flush cover screws are strong, durable polyamide
- Mounting tracks along body side walls for PC card installation
- Opaque and clear covers are impact-resistant polycarbonate for PCE, opaque covers are ABS for ABE series
- Body is impact-resistant polycarbonate for PCE series and ABS for ABE series
- Molded internal pads for mounting optional panels, rails and other components
- Material is halogen free
- Seamless foam-in-place gasket assures water-tight and dust-tight seal
Customer Reviews
0.0
All Reviews
Hoffman Q18188PCE 2D DXF CAD.zip
Hoffman Q18188PCE 3D STEP CAD.zip
Hoffman Q18188PCE CAD Drawing.zip
Hoffman Q18188PCE CSA Certification.pdf
Hoffman Q18188PCE Declaration of Compliance.pdf

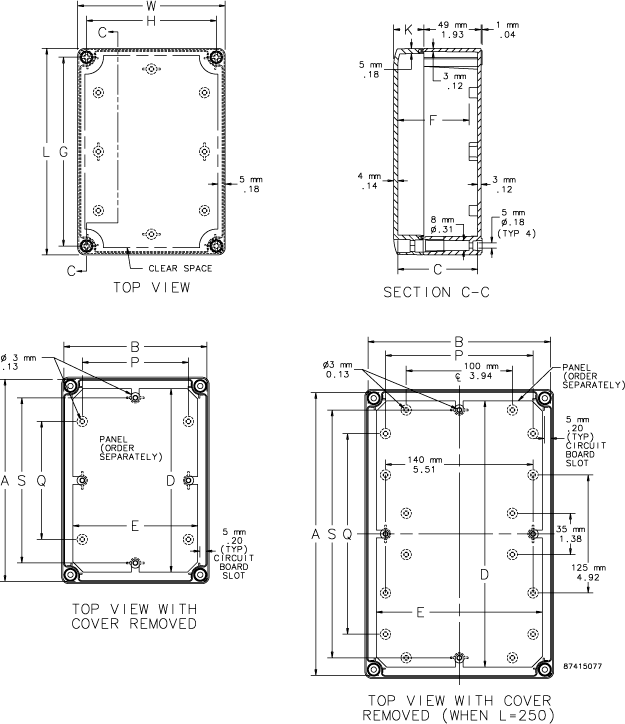

Hoffman Q18188PCE Dimension Drawing.gif
Hoffman Q18188PCE EU Certification.pdf
Hoffman Q18188PCE Spec Sheet.pdf
Hoffman Q18188PCE UL Certification.pdf
