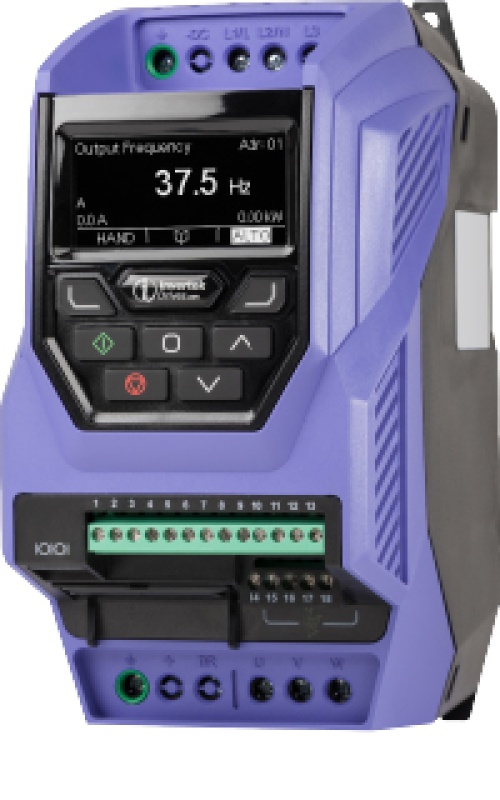

Invertek ODV-3-420300-101E-MN Optidrive Eco - 240 Volt, 10 HP

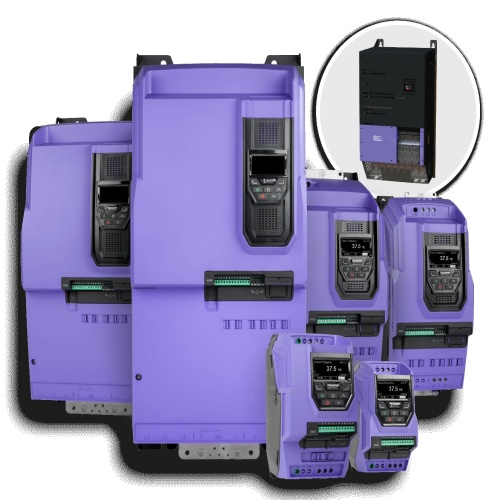

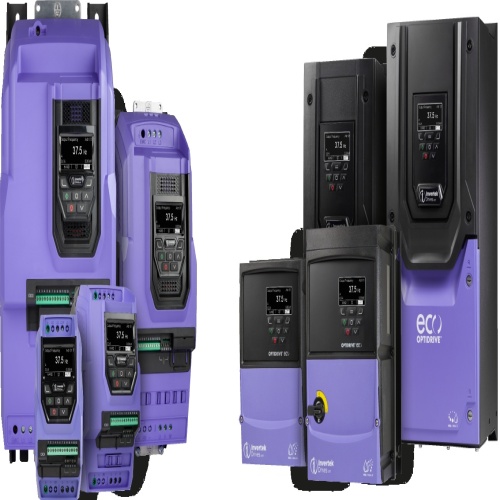

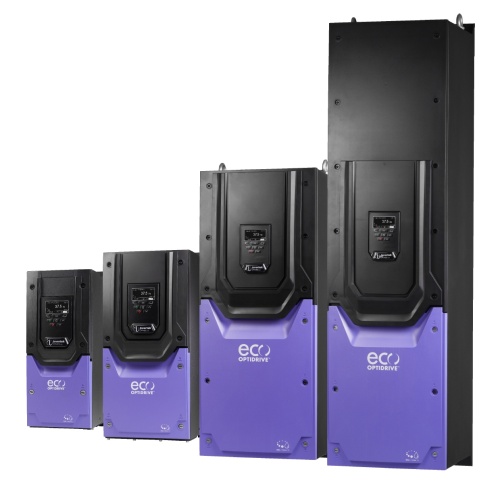

Invertek ODV-3-420300-101E-MN - Optidrive Eco is a compact Variable Frequency Drive (VFD) designed for pumping and HVAC systems. It supports BTL, BAC Net, and Modbus RTU communication protocols. With sensorless vector control, it can handle various motor types. The drive offers multiple pump control features, including Optiflow for multi-pump systems and in-built PID controller for precise regulation. It comes in IP55 enclosures, ensuring dust-tightness and washdown readiness. Optidrive Eco provides efficient control for pumping and HVAC applications, optimizing performance and enabling building automation.

Specifications
VFD Horsepower Output	10 HP
VFD Amperage Output	30 Amp
Manufacturer	Invertek
VFD Input Voltage	240 Volt Single Phase
VFD Output Voltage	240 Volt Three Phase
VFD KW Output	7.5 KW
VFD Frame Type	4
VFD Line	ODV-3
VFD Control Panel	TFT
VFD NEMA-IP Rating	IP66 Outdoor w/ Disconnect
VFD EMC Filter	Without
