Invertek ODP-2-42075-1H04B-MN Optidrive P2 - 240 Volt , 7.5 HP

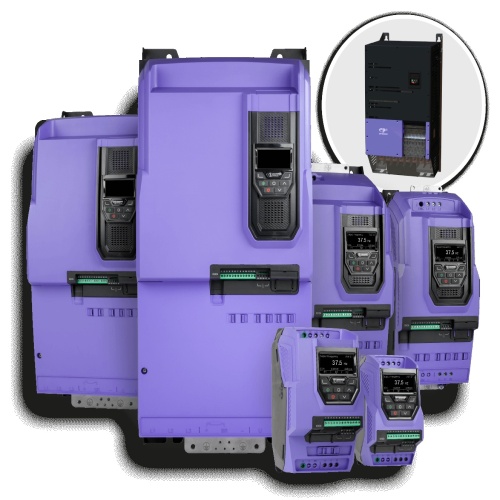

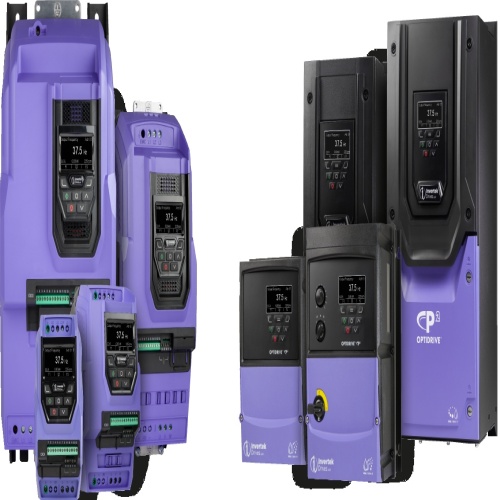

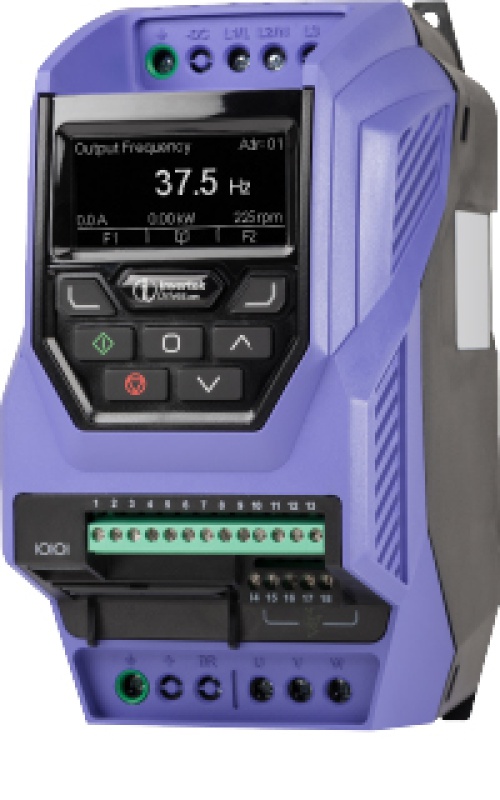

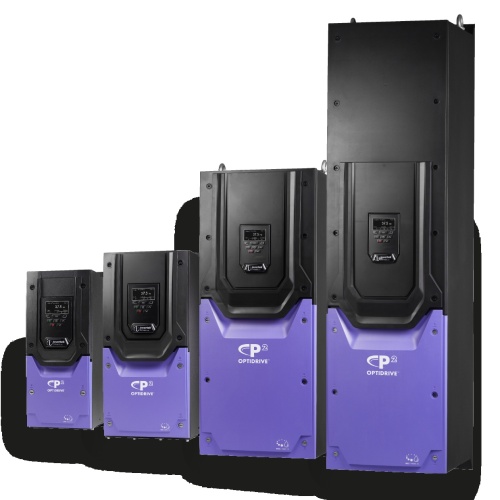

Invertek ODP-2-42075-1H04B-MN - Optidrive P2 is a high-performance variable frequency drive known for its flexibility and usability. It offers 150% overload for 60 seconds and 200% overload for 4 seconds, making it ideal for industrial heavy-duty applications. The drive supports sensorless vector control for all motor types and allows PM motor control for future-proofing. It includes built-in Modbus RTU and CAN communication, an integral EMC filter, and an integral brake transistor. With options for external accessories and software, installation flexibility, and enclosure choices (IP20, IP55, IP66/NEMA 4X), Optidrive P2 provides reliable and efficient motor control solutions.

Specifications
VFD Horsepower Output	7.5 HP
VFD Amperage Output	24 Amp
Manufacturer	Invertek
VFD Input Voltage	240 Volt Single Phase
VFD Output Voltage	240 Volt Three Phase
VFD KW Output	5.5 KW
VFD Frame Type	4
VFD Line	ODP-2
VFD NEMA-IP Rating	IP66 Outdoor Switched
VFD EMC Filter	Internal EMC Filter
VFD Control Panel	TFT
