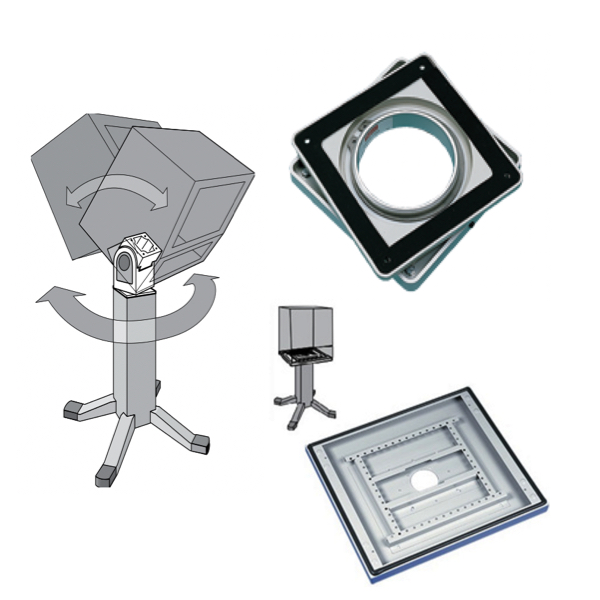

HMI Pedestals & Bases

HMI enclosure pedestals and bases are used to support an operator interface enclosure. They come with or without legs, and heights varying between 6 inches and 41 inches. Swivel bases can be installed between the bottom of the operator interface enclosure and the pedestal. They are used to provide a machine operator a way to easily rotate an operator interface enclosure to a maximum of 550 degrees, resulting in a convenient operating position. Swivel bases can be locked in any position.

Hoffman bolt-down pedestals and pedestals with legs are available in two heights. The 4 x 4 inch pedestal is used with CONCEPT HMI and INLINE HMI enclosures. The 8 x 8 inch pedestal is used with PROLINE sloped-front enclosures. The vertical tube has a rigid one-piece construction and cast aluminum base flanges are bolted to the tube. Vertical tubes are also available with four die-cast legs attached. Tapped mounting holes in the top of the pedestal allow attachment to HMI bases with cutout, swivel, swivel tilt or angle adapter.

Hoffman Swivel bases allow a user to rotate an HMI enclosure to a convenient operating position. The swivel has a maximum of 350 degrees and can be locked in any position. It is designed for use between the bottom of an HMI enclosure and a pedestal.

Hoffman Swivel Tilt combination bases provide the user a way to rotate and tilt an HMI enclosure for safe operation and optimal viewing. The swivel feature allows a maximum rotation of 350 degrees and the tilt feature allows forward and backward movement up to 30 degrees from horizontal. Swivel can be locked in any position and the tilt lock allows incremental adjustments.
