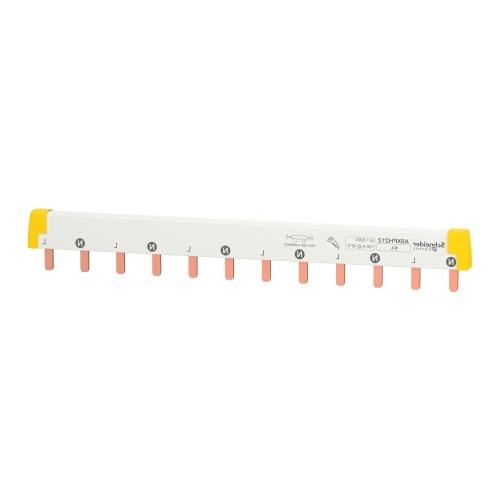

Schneider Electric A9XPH212 Acti 9 - comb busbar - 1L+N - 18 mm pitch - 12 modules - 100 A
Normally In Stock
Code: 90423
Schneider A9XPH212 Comb busbar IEC 60947-7-1, IEC 61439-2 415 VAC Acti 9 iC60, Acti 9 iK60, Acti 9 iID, Acti 9 iID K, Acti 9 iSW, Acti 9 iSW-NA, Multi 9 C60 Acti 9 6 ways N + 1 L Cuttable 12 N L 00908 - C60N SUPPLEMENTARY PROTECTORS 8.66 in (220 mm DE2 00785901953142 1 0.17 lb(US
Condition: New
CALL FOR LEAD TIME$67.19
Sale Price
$55.99
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Acti 9 - comb busbar - 1L+N - 18 mm pitch - 12 modules - 100 A
Specifications
Breaker Voltage Rating
480 VAC
Component
Busbar
Manufacturer
Schneider Electric
Manufacturer
Square D
Features
This Acti9 product is a cuttable horizontal comb busbar 12 modules for Acti9 iC60 or Acti9 iK60
It is dedicated to N+1L installations
The type is NL (Neutral, Line)
It is a set of 1 device
It is suitable for 6 devices (1P+N)
The length is 220mm.The total number of modules of 18mm is 12
The pin cross section is 16mm2
The type of electric connection is PIN
The number of phase is 1
The number of poles is 2
The Ie rated operational current at 40°C is 100A
The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers
The Ui rated insulation voltage is 500VAC
The Ue rated operational voltage is 415VAC
The color of the device is white RAL9003
The pollution degree is 3
According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960°C within 30s
It complies with IEC 60947-7-1 and IEC 61439-2 standards.
